FPVLR dipoles absolutely AMAZING

Discussion in 'Phantom 2 Vision + Mods' started by phantom13flyer, Jun 5, 2015.

  1. phantom13flyer

    Joined:
    May 26, 2015
    Messages:
    1,351
    Likes Received:
    404
    Tony is a freaking antenna genius . He made me a set of 2.4 ghz bird side dipoles and the results were incredible. I made it out to 3 miles on the highest resolution setting and I was worried about the battery level so I turned around. FPVLR is the best in my opinion and the results prove it. Customer service is #1. I couldn't be happier. Thank you Tony

    FLPTFLYER likes this.
  2. FLPTFLYER

    Joined:
    Aug 2, 2014
    Messages:
    104
    Likes Received:
    64
    Which birdside dipoles did you purchase? Do you have a link?

  3. phantom13flyer

    Joined:
    May 26, 2015
    Messages:
    1,351
    Likes Received:
    404
    They were 1 offs made by Tony from fpvlr . Hopefully he'll start selling them but if you email him maybe he'll do the same for you. They're amazing . Hopefully he'll take care of you . Everybody thst has an itelite antenna needs these dipoles . Good luck and safe flying !!

    FLPTFLYER likes this.
  4. FLPTFLYER

    Joined:
    Aug 2, 2014
    Messages:
    104
    Likes Received:
    64
    Can you take a picture of the dipoles you have. Just very curious as I have saved enough right now to buy the birdside 2.5 CP antennas from his site. How much did it cost you?

  5. FLPTFLYER

    Joined:
    Aug 2, 2014
    Messages:
    104
    Likes Received:
    64
    Just Spoke to Tony, he said he will make it available for the ITELITE guys. This is great news!

  6. phantom13flyer

    Joined:
    May 26, 2015
    Messages:
    1,351
    Likes Received:
    404

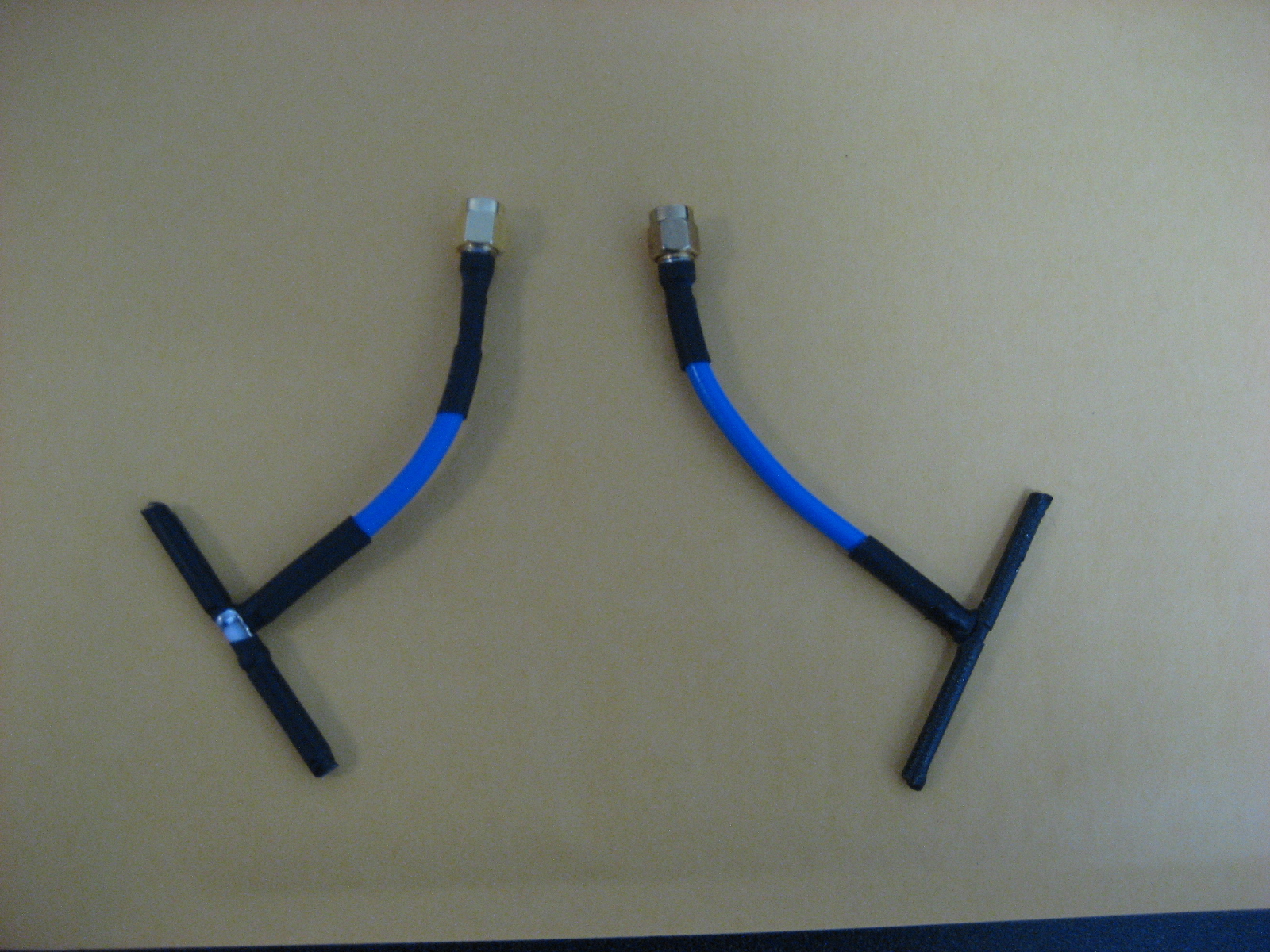

    That's awesome! ! IMG_7934-1.jpeg

    Prem likes this.
  7. FLPTFLYER

    Joined:
    Aug 2, 2014
    Messages:
    104
    Likes Received:
    64
    What is the Antenna orientation in relation to the Phantom?

  8. phantom13flyer

    Joined:
    May 26, 2015
    Messages:
    1,351
    Likes Received:
    404
    That's the position I got the best results, same on both sides


    Attached Files:

    Richard J and FLPTFLYER like this.
  9. FLPTFLYER

    Joined:
    Aug 2, 2014
    Messages:
    104
    Likes Received:
    64
    Oh I forgot to ask, are these with boosters on the pilot side?

  10. phantom13flyer

    Joined:
    May 26, 2015
    Messages:
    1,351
    Likes Received:
    404
    Yeah pilot side I got the 2.4 and 5.8 from tony and then I ordered the 3w 2.4 ghz sunhans from Amazon. It's quite a mess on my controller lol

    FLPTFLYER likes this.
  11. garrock

    Joined:
    Apr 29, 2014
    Messages:
    466
    Likes Received:
    47
    Location:
    Portsmouth Ohio USA
    Still mixed signals about this set up from the other thread:
    http://www.phantompilots.com/thread...antenna-with-itelite.40105/page-2#post-407209


    The custom dipoles now mounted on your bird are obviously linear polarity and I assume you mounted them in a vertical fashion.

    Since the ground based ITELITE antenna is also Linear Vertical RF Polarity, that optimizes the overall RF Link Budget gain.
    Comparatively: The P2V+ built in stock antenna's are "quasi" Circular RF Polarity as they emit from their flat surface. (however, they emit mostly Linear Vertical RF Polarity from their edges.) ​

    ------------------

    It appears most external antenna setups are used in an open space drag strip down ranging type environment; the bird ending up 400+ feet altitude.

    RF signal multi-path issues should be low in this type flying environment. So, keeping the same RF Polarity on both ends can help maintain an optimal RF Link Budget.​

  12. rrmccabe

    Joined:
    Jul 2, 2014
    Messages:
    1,647
    Likes Received:
    358
    Location:
    Ankeny, Iowa
    For a dipole unless you are flying straight up or sideways that should be a poor location for a "dipole"

    Not doubting your results but that in theory is the worst possible orientation for a dipole.

  13. garrock

    Joined:
    Apr 29, 2014
    Messages:
    466
    Likes Received:
    47
    Location:
    Portsmouth Ohio USA
    oh wow.. I missed seeing the picture. yeah.. they are mounted horizontally.

    You should try them vertically.
    Just a little off vertical; each of the two dipoles slightly opposing each other.

  14. phantom13flyer

    Joined:
    May 26, 2015
    Messages:
    1,351
    Likes Received:
    404
    O wow if I got those results and that wasn't even the best way to mount them. I have them the way tony told me to mount them unless I completely got it backwards . I'm certainly out of my element here guys . What is the best way to post the video from my flights on here. I'm dropping my tablet off tomorrow to get rooted so I can copy the flight logs from it and sync it with dashware. But I'm not sure how to do all of this stuff. Up until 2 months ago I had never flown anything and definitely never taken anything a part like this and done modifications before so in that respect I'm kind of proud of myself but I really don't know how all these parts work together. I still have a lot to learn but I think I'm in the right place to learn a lot. From reading everything on here from you guys it's pretty overwhelming the amount of knowledge a lot of people have on this subject. If you guys have the patience I'm definitely eager to learn . All I do know for sure is my results I can put of some videos of some of my flights (I think) and you should be able to get a pretty good idea of the distance it travels and hopefully I can get dashware to work . Would flytrex be easier to use?

  15. rrmccabe

    Joined:
    Jul 2, 2014
    Messages:
    1,647
    Likes Received:
    358
    Location:
    Ankeny, Iowa
    A dipole antenna has maximum signal this direction as well as off the sides. Definitely not off the ends.


    phantom13flyer likes this.
  16. phantom13flyer

    Joined:
    May 26, 2015
    Messages:
    1,351
    Likes Received:
    404
    Thank you so I usually fly between 450 and 500 feet would be necessary to have then angled slightly toward the ground. Do you think you could show me with the arrows which way exactly they should be mounted in relation to the ground . I'm sorry I'm really new at this stuff. I'm an idiot when it comes to this.

  17. phantom13flyer

    Joined:
    May 26, 2015
    Messages:
    1,351
    Likes Received:
    404
    Hopefully I can get the video up from Thursday night from my flying club I was at . There's a great shot of a couple water towers that I'm flying past and I pulled it up and made two way points from where I took off and the second water tower and it is 14,225 feet from where I took off. It would really be great to have the flight logs sync with the video .

  18. phantom13flyer

    Joined:
    May 26, 2015
    Messages:
    1,351
    Likes Received:
    404
    What is the easiest and fastest way to take a video from an SD card and post it to this forum .

  19. garrock

    Joined:
    Apr 29, 2014
    Messages:
    466
    Likes Received:
    47
    Location:
    Portsmouth Ohio USA
    set up a youtube account. easy to do. Then link it here using the media icon.

    Then later look closer into the youtube account details to set up a proper YouTube Channel.

    phantom13flyer likes this.
  20. phantom13flyer

    Joined:
    May 26, 2015
    Messages:
    1,351
    Likes Received:
    404
    thank you garrock ill give it shot. thanks
