Digdat0 said:
i wanna bump my ask. has anyone who has modded a battery seen the smart board look like this? I've modded 20+ batteries, first time seeing a green board.

Im asking, I bought this as an "official dji battery" from a trusted seller, I think its bullcrud and fake. I wanna call him on it, but have no evidence (and i managed to fry the board while modding somehow, so im gonna hack these new cells with an older battery smartboard as a thanksgiving project!)

Click to expand...

Haven't opened up a newer battery lately since I have bird side mod now but on all of my boards there is a marking (under the white sticker with s/n that says "DJI0617 Rev... L" along with a date below that.

  • Like
Reactions: Digdat0
Ed209 said:

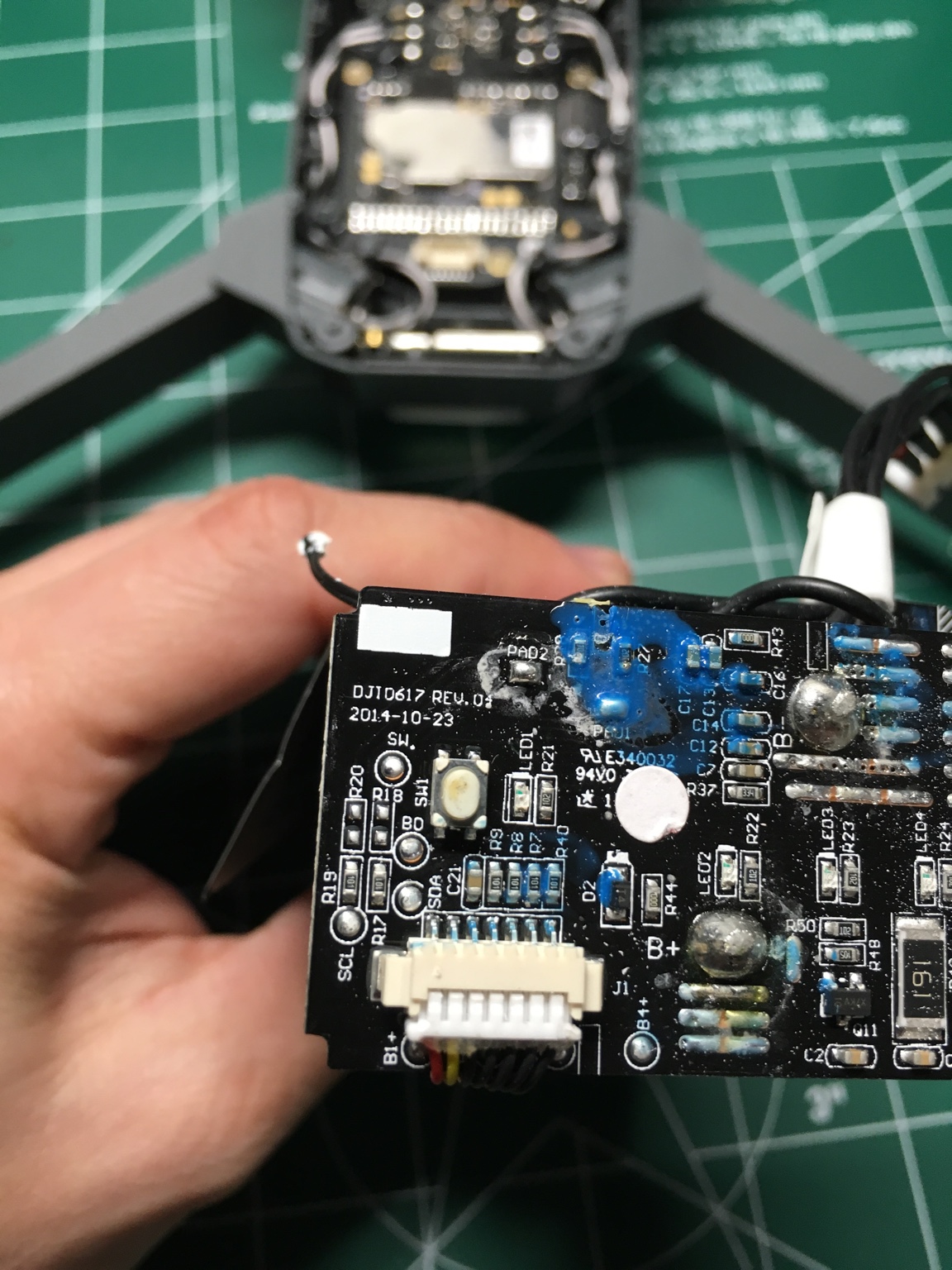

Haven't opened up a newer battery lately since I have bird side mod now but on all of my boards there is a marking (under the white sticker with s/n that says "DJI0617 Rev... L" along with a date below that.
View attachment 68931
Click to expand...
Thanks. That's exactly what I'm used to seeing as well.
Edit .. I see that mavic open

Digdat0 said:
Thanks. That's exactly what I'm used to seeing as well.
Edit .. I see that mavic open
Click to expand...

DJI loves to put their name on everything. Also there definitely should be some liquid reactive stickers in there too.

Mavic getting a little work done [emoji106]

  • Like
Reactions: Digdat0
mandalay said:
Looks great. What's the thickness of the copper wire bezel? I've been reading this thread with great interest. I see 24 and 28 gauge on Amazon but not sure which one fits. Please advise. Thanks


Sent from my iPhone using PhantomPilots
Click to expand...
24awg 1/4" and i used 3/16"

Sent from my SM-G900V using PhantomPilots mobile app

Ed209 said:
DJI loves to put their name on everything. Also there definitely should be some liquid reactive stickers in there too. Mavic getting a little work done [emoji106]
Click to expand...

here's some better pics, DJI name is not on there once.



Digdat0 said:
here's some better pics, DJI name is not on there once.


Click to expand...

Yeah that looks like a cheap knock off. PCB and the components look cheap and are in no way laid out like a DJI board.

Edit: Even the glue used to secure the wires is cheap and not what DJI uses on ALL their products.

Between what I read on here about DB losing time with a 6600 he had split and comparing my MS5200 vs the 5200 Horizon split and now you saying this, 3 strikes it's out...Thanks Ed

chazz said:
Between what I read on here about DB losing time with a 6600 he had split and comparing my MS5200 vs the 5200 Horizon split and now you saying this, 3 strikes it's out...Thanks
Click to expand...

DB and I both tested numerous packs. He did more with the MS 5200 split and 6000 split if I remember correctly. We both we suckered early on with the split DJI battery. I have even split my own DJI batteries and they still suck when split 2x2S. Unknowncaller put up some really good numbers but I don't know a single person who put up anything close. I even sent Unknowncaller my split pack and he didn't do as well.


Sent from my iPad using PhantomPilots

Ed209 said:
DB and I both tested numerous packs. He did more with the MS 5200 split and 6000 split if I remember correctly. We both we suckered early on with the split DJI battery. I have even split my own DJI batteries and they still suck when split 2x2S. Unknowncaller put up some really good numbers but I don't know a single person who put up anything close. I even sent Unknowncaller my split pack and he didn't do as well.


Sent from my iPad using PhantomPilots
Click to expand...

I was thinking about doin a MS8...Split up the load a little...I have 2 of them and one has a slightly weak Cell..Honestly I'm just gettin a little bored and needed something to do...

  • Like
Reactions: Digdat0
chazz said:
I was thinking about doin a MS8...Split up the load a little...I have 2 of them and one has a slightly weak Cell..Honestly I'm just gettin a little bored and needed something to do...
Click to expand...

Hey if you're bored then go for it. It will be a learning experience. Like right now I'm charging up a pack that is puffing up a little. Got it out on the back patio with 25ft extension cord in case it blows.


Sent from my iPad using PhantomPilots

who wants to help me troubleshoot my modded smart board to enable an external hookup? where's maxwell smart anymore anyways? I think he got one of these functional. I can get it to power, but it wont power on when i use the button. single led flashes. im pretty sure i have the balance leads hooked up right. thoughts? (its ugly, dont chastise me! :p)




The placement of the battery seems best when it is in the middle of the phantom. I have yet to fully test out the battery mod since my booster ran into some problems, so here's a short video of my first attempt at a dual mod. Feels like it's not even carrying any extra weight with this setup.
