IMU CALIBRATION

Discussion in 'General Discussion' started by teccer, Jul 14, 2016.

  1. teccer

    Joined:
    Jun 17, 2015
    Messages:
    412
    Likes Received:
    52
    Location:
    SW UK

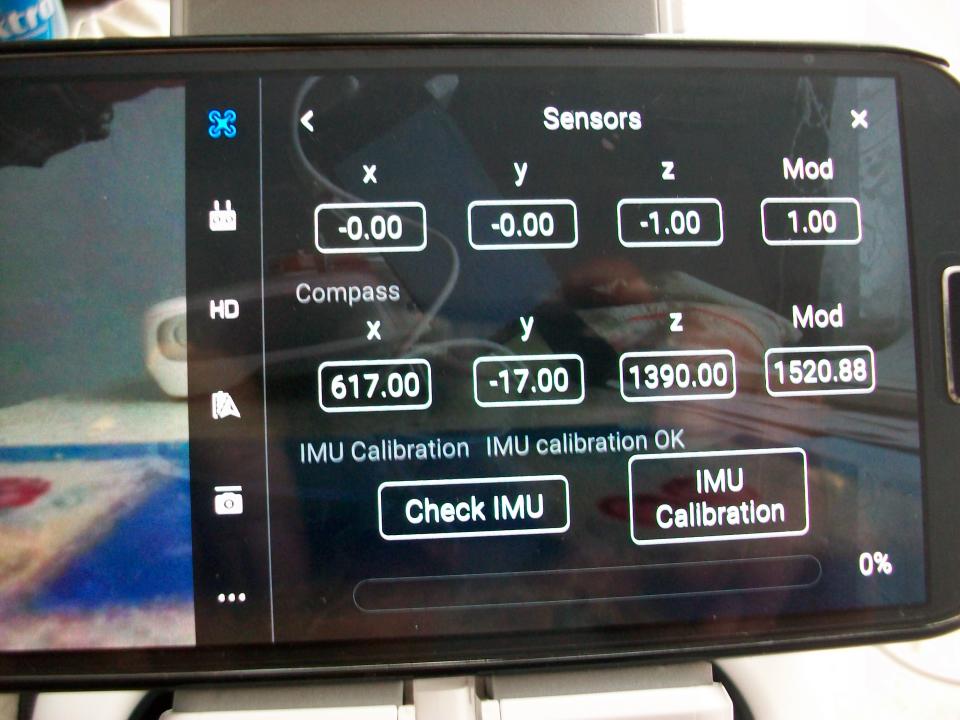

    as it was cold this morning I done a IMU calibration and this is the result, last time I done it all numbers were 0,00 except for z which was 0.01 so I was surprised when I got this result, checking the IMU after it said no need to do a calibration, what 100_0552.JPG do you think?

  2. ROD PAINTER

    Joined:
    Dec 12, 2015
    Messages:
    183
    Likes Received:
    48
    Looks good to me!


    Sent from my iPhone using PhantomPilots mobile app

  3. matti

    Joined:
    Mar 15, 2016
    Messages:
    400
    Likes Received:
    62
    AFAIK Acceleration (g) X, Y, Z only means acceleration in those directions.

    So unless someone is bumbing the AC while you are doing the calibration the X & Y should be 0.

    And Z in earth gravity = -1 (1G = 9.81m/s^2)

    Compass raw XYZ should be -300 - +300, Mod 1400-1800, ideally just above 1400 (normal range is 750-2250).
    Mod =SQRT(X^2+Y^2+Z^2)
    There is no constraint about X, Y, and Z being [-300, 300]

    #3 matti, Jul 14, 2016
    Last edited: Jul 14, 2016
    ROD PAINTER likes this.
  4. robinb

    Joined:
    May 10, 2014
    Messages:
    2,907
    Likes Received:
    503
    Location:
    A place in the sun

    Your going down to hell :)

    No harm doing a calibration, it only takes a few minutes.

    You can get a nice HOT drink and think of the really nice cold drinks here......

  5. teccer

    Joined:
    Jun 17, 2015
    Messages:
    412
    Likes Received:
    52
    Location:
    SW UK
    well I heard that your going to get lots and lots of rain next week, temperature dropping down to single figures, hope you enjoy it ;);):p

  6. robinb

    Joined:
    May 10, 2014
    Messages:
    2,907
    Likes Received:
    503
    Location:
    A place in the sun
    Nope :)

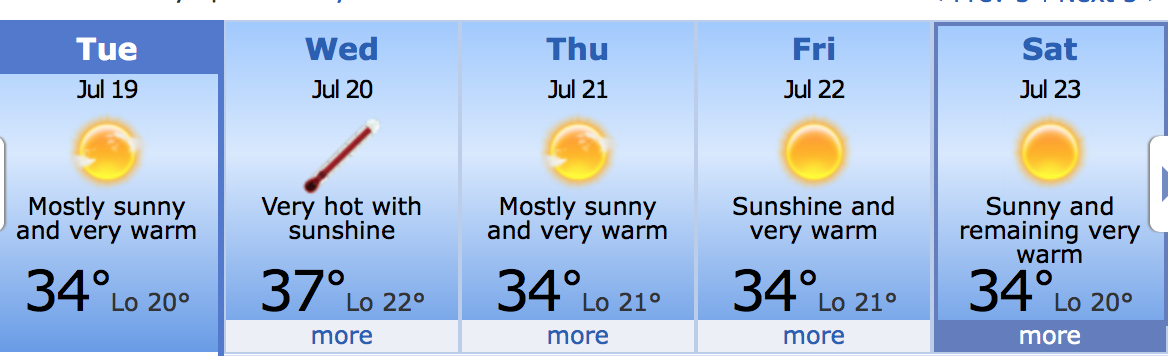

    Screen Shot 2016-07-14 at 15.03.30.png

  7. teccer

    Joined:
    Jun 17, 2015
    Messages:
    412
    Likes Received:
    52
    Location:
    SW UK
    that's much too hot for me that's why we come back here for the BRITISH summer, just mind your Phantom doesn't melt in all that heat,
    October to next May is going to be good this year, I'll be able to get lots in with my new P3P, really chuffed with the way it performs, as you told me I would notice a big difference between the P1 V1.1.1 and the P3P

  8. robinb

    Joined:
    May 10, 2014
    Messages:
    2,907
    Likes Received:
    503
    Location:
    A place in the sun
    Nothing like a British summer

    Screen Shot 2016-07-14 at 17.55.03.png


    Glad you are happy.
