wifi extender mod HELP!!!

Discussion in 'Phantom 2 Vision Discussion' started by assamite1984, Mar 23, 2014.

  1. assamite1984

    Joined:
    Dec 21, 2013
    Messages:
    61
    Likes Received:
    0
    ok so i did the wifi extender mod a few weeks back and for the life of me im only getting 1300ft range

    here is what i have done

    ive tried 2 9dbi omni antennas
    ive changed the internal antenna lead 3 times
    ive changed the internal connection i put the lead onto 2 times
    ive put the extender back to normal internal antennas and got 1100ft range so i did not damage and internals when doing the mod.
    i have a brand new tp link 8dbi omni antenna which i tried not 30 mins ago and still only 1300ft range before the camera connection broke


    each test was done with a fully charged extender
    im using a lg-g2 smart phone to connect to the drone and view the camera
    i always fly 100ft in the air with a direct line of sight between me and the drone, always flying above trees never around them

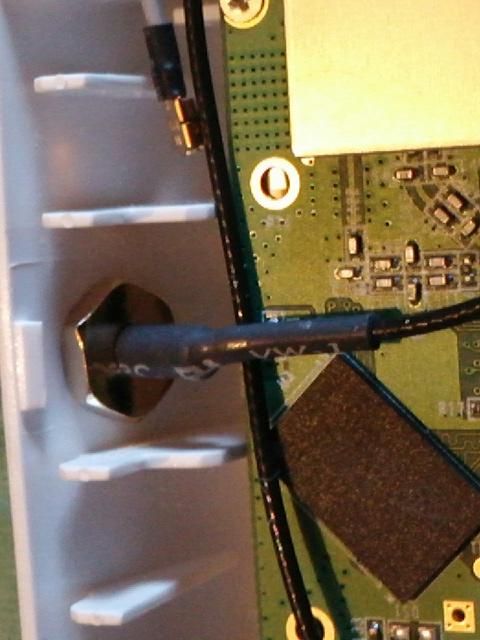

    took some pics of what i have done
    i screw in the antenna till its tight and cant screw in anymore.

    any advice would be welcome as i have ran out of ideas

    http://i852.photobucket.com/albums/ab85 ... 62a61f.jpg

    http://i852.photobucket.com/albums/ab85 ... afd4d8.jpg

    http://i852.photobucket.com/albums/ab85 ... d6bdb8.jpg

    http://i852.photobucket.com/albums/ab85 ... 2f12be.jpg

    cheers.

  2. mr_3_0_5

    Joined:
    Dec 24, 2013
    Messages:
    440
    Likes Received:
    0
    Everyone's distance will vary with that said I can only suggest you get a helical LHCP. my range wasn't very consistent with the tp link whips and you have to understand how the antenna emits it's signal in order to aim the omni
    Yes it's an onmi directional but with a higher gain the rf pattern is like a flattened donut
    Also the pv2 antennas shoot out of the side of the heli so try flying sideways and see how that goes

  3. assamite1984

    Joined:
    Dec 21, 2013
    Messages:
    61
    Likes Received:
    0
    ok cheers
    can u help me with the heli antenna

    there are options i need to choose and just wanna make sure i get the right selections

    http://i852.photobucket.com/albums/ab85 ... 84d8a4.png

    im guessing the connection type is RP-SMA male

    and the frequency is 2400Mhz

    just wanna make sure those are the right selections before i go ahead and order it

    cheers

  4. mr_3_0_5

    Joined:
    Dec 24, 2013
    Messages:
    440
    Likes Received:
    0
    Yes that is right
    I will be selling that same antenna in couple days after I do some more tests

  5. gfredrone

    Joined:
    Jan 24, 2014
    Messages:
    1,221
    Likes Received:
    191
    Wish I would have known. Just bought the 6.5 today. What was you best distance with this one? Are you selling and keeping the compact dome setup?

  6. skyhighdiver

    Joined:
    Dec 19, 2013
    Messages:
    1,007
    Likes Received:
    211
    Location:
    South Dakota
    yes waiting on the 1/2 sphere, pinwheel test :?

  7. mr_3_0_5

    Joined:
    Dec 24, 2013
    Messages:
    440
    Likes Received:
    0
    Yea I need to do a couple more tests with both but will end up selling the 6.5 turn and keep the half dome
    The test for the 6.5 I'm getting to 3000 ft consistent 640x480 full pan in all directions beyond 3000 ft it starts to get choppy
    The half dome has gotten me to 2500 full 640x480 full pan and starts to get choppy after that
    I have just mounted the pinwheels and will do some tests tomorrow with both

  8. skyhighdiver

    Joined:
    Dec 19, 2013
    Messages:
    1,007
    Likes Received:
    211
    Location:
    South Dakota

    your going to do the 1/2 dome and pinwheel on repeater stock vision first right :)
    or is that what you quoted (2500) and now your adding to vision?

  9. mr_3_0_5

    Joined:
    Dec 24, 2013
    Messages:
    440
    Likes Received:
    0
    your going to do the 1/2 dome and pinwheel on repeater stock vision first right :)
    or is that what you quoted (2500) and now your adding to vision?[/quote]

    Yes the half dome and pinwheel on the repeater and stock pv2 has gotten me to 2500 ft solid
    Also my testing area wasn't the greatest but I have been doing all my tests here so at least they are consistent

  10. skyhighdiver

    Joined:
    Dec 19, 2013
    Messages:
    1,007
    Likes Received:
    211
    Location:
    South Dakota
    Yes the half dome and pinwheel on the repeater and stock pv2 has gotten me to 2500 ft solid
    Also my testing area wasn't the greatest but I have been doing all my tests here so at least they are consistent[/quote]

    thank you :D
    just for comparison what did you get in this same area stock, as Many have dramatic differences
    ive heard 300 ft all the way to 1800 ft stock so hard to know .would like your input so im getting
    all distances from one sourse

  11. mr_3_0_5

    Joined:
    Dec 24, 2013
    Messages:
    440
    Likes Received:
    0
    thank you :D
    just for comparison what did you get in this same area stock, as Many have dramatic differences
    ive heard 300 ft all the way to 1800 ft stock so hard to know .would like your input so im getting
    all distances from one sourse[/quote]

    I was getting around 1000 ft give or take 100
    But just like they advertised

  12. skyhighdiver

    Joined:
    Dec 19, 2013
    Messages:
    1,007
    Likes Received:
    211
    Location:
    South Dakota
    thank you :D
    just for comparison what did you get in this same area stock, as Many have dramatic differences
    ive heard 300 ft all the way to 1800 ft stock so hard to know .would like your input so im getting
    all distances from one sourse[/quote]

    I was getting around 1000 ft give or take 100
    But just like they advertised[/quote]

    thank you for all your help on this could you post a photo of the 1/2 dome with pinwheel set up on your receiver going to order and start my mods want to make sure I do it right.
    Would guess the dome mounts to front of repeater and pinwheel points straight up off the top
    so the dome is needed to be pointed right at copter and pinwheel straight up in the air right

  13. gfredrone

    Joined:
    Jan 24, 2014
    Messages:
    1,221
    Likes Received:
    191
  14. artbrana

    Joined:
    Feb 19, 2014
    Messages:
    48
    Likes Received:
    0
    This is what my setup looks like now (a little ridiculous if i might add haah) ill do some test today since i just finished this last night.

    [​IMG]
