TP-LINK mod on Range Extender

Discussion in 'Phantom 2 Vision Discussion' started by onesNzeros, Jun 5, 2014.

  1. onesNzeros

    Joined:
    Feb 19, 2014
    Messages:
    36
    Likes Received:
    0
    I modded my extender with both an 8 dbi omni and a 9 dbi directional antenna. The farthest I've gone before losing FPV is just over 5500 feet.

  2. phantomguy

    Joined:
    Mar 26, 2014
    Messages:
    349
    Likes Received:
    2
    Many here have done the range extender mod. Most of ditched the Tp Link in favor of either a patch antenna from Amazon or antennas from Horizon or FPVLR.com. yes, they work great. And no, nothing is going to get around the fact that you MUST have Line of Sight between your Transmitter/Extender and Phantom in order to maintain control and FPV consistently.

  3. phantomguy

    Joined:
    Mar 26, 2014
    Messages:
    349
    Likes Received:
    2
    Keep in mind that you can still greatly increase the line of site range by drilling the hole so that you can use various antennas, but none of them will get you the ability to have successful transmission through obstacles (trees, buildings, etc)

  4. jimdenburg

    Joined:
    Jan 21, 2014
    Messages:
    268
    Likes Received:
    3
    Location:
    Mukwonago, WI
    Also keep in mind that if you decide to drill that hole that A: you are very careful removing the screws for the casing (they'll strip if you breathe on them wrong), and B: be very very careful when drilling that you don't hit the circuit-board or you'll need a new extender. You can either remove the board completely or at the very least drill from the side out with a piece of cardboard covering the board. Then again if you don't plan on flying too far out and get a consistent signal when in line of sight, then I wouldn't mess with it.

  5. DKDarkness

    Joined:
    Dec 16, 2013
    Messages:
    554
    Likes Received:
    3
    Location:
    Denmark
  6. Happyflyer

    Joined:
    May 5, 2014
    Messages:
    1,805
    Likes Received:
    98
    Location:
    Cold, Cold, Michigan
    That is fantastic! I did just about the same mod and increased control and FPV from around 1050 feet to 1250 feet. Nowhere what you got. Must be I have my hat on crooked.

  7. TigardMikeR

    Joined:
    Nov 9, 2014
    Messages:
    15
    Likes Received:
    0
    Can you please tell me more about your setup? and some information on your mods? Thanks

  8. Walkers13

    Joined:
    Nov 11, 2014
    Messages:
    52
    Likes Received:
    13
    Wow! RE500? I am using the RE500 with the mod and using a single 5dbi TP Link antenna. I can achieve 1200-1300 feet.

    Is your directional antenna the half dome from FPVLR?

    I too would like to know.

    Thanks

  9. onesNzeros

    Joined:
    Feb 19, 2014
    Messages:
    36
    Likes Received:
    0
  10. Old Gazer

    Joined:
    Nov 16, 2013
    Messages:
    186
    Likes Received:
    0
    Location:
    Eastern Oklahoma
  11. gcbuss

    Joined:
    Oct 2, 2014
    Messages:
    39
    Likes Received:
    0
    Is there any reason why you do not use two

  12. gcbuss

    Joined:
    Oct 2, 2014
    Messages:
    39
    Likes Received:
    0
    Sorry. Two of the TP-LINK TL-ANT2408CL 2.4GHz ?

  13. Old Gazer

    Joined:
    Nov 16, 2013
    Messages:
    186
    Likes Received:
    0
    Location:
    Eastern Oklahoma
    They have a shorter range than the 2409 model

  14. gcbuss

    Joined:
    Oct 2, 2014
    Messages:
    39
    Likes Received:
    0
    Does it matter which connection each antenna goes to?

  15. Old Gazer

    Joined:
    Nov 16, 2013
    Messages:
    186
    Likes Received:
    0
    Location:
    Eastern Oklahoma
    No it doesn't. The 2409 is directional. The flat surface needs to be pointed at the quad during flight. The 2408 puts out a signal in all directions with the weakest coming out of the tip end of the antenna in the direction it is pointing.

  16. keiji11

    Joined:
    Oct 21, 2014
    Messages:
    14
    Likes Received:
    0

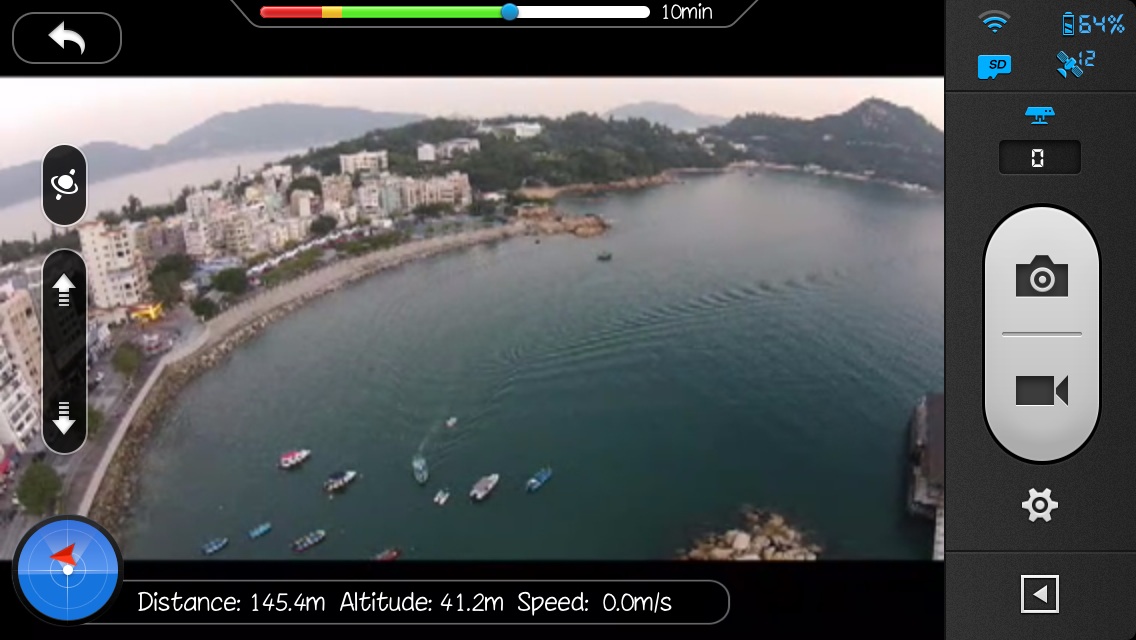

    I tested my mod today the result was not good
