Shaking Video after small crash

Discussion in 'Pro/Adv Discussion' started by Daniel Dash, Sep 22, 2015.

  1. Daniel Dash

    Joined:
    Sep 8, 2015
    Messages:
    16
    Likes Received:
    6
    Location:
    Marbella / Spain
    Hello. I had a small crash yesterday. Everything seems perfect outside. No breaks, scratches etc.
    But there is a shaking video. Here is sample



    Any ideas how to fix this? Or service only?

  2. DJJI

    Joined:
    Jul 10, 2015
    Messages:
    190
    Likes Received:
    16
    Turn it on, lift it up with your hands and study the gimbal too see where it`s potentially lagging or if you can see something else that is wrong. I guess it`s not the electronic, because of the physical crash.

  3. Daniel Dash

    Joined:
    Sep 8, 2015
    Messages:
    16
    Likes Received:
    6
    Location:
    Marbella / Spain
    I really cant see anything potentially broken

  4. wellsy57

    Joined:
    Aug 10, 2015
    Messages:
    4
    Likes Received:
    0
    Maybe out of balance props.

  5. Pete Leare

    Joined:
    Aug 6, 2015
    Messages:
    334
    Likes Received:
    105
    Location:
    Windham NH
    That would be my guess also. Try a new set of props first, or check your existing props for anything 'unusual' like nicks or even bugs. It doesn't take much to unbalance them. There are quick easy ways to check balance with a wine glass.. Check the threads to see how, or buy a proper balancer

  6. Daniel Dash

    Joined:
    Sep 8, 2015
    Messages:
    16
    Likes Received:
    6
    Location:
    Marbella / Spain
    Nope. Just tested with new set of props

  7. johnnyu

    Joined:
    Aug 5, 2015
    Messages:
    79
    Likes Received:
    12
    Location:
    Baltimore Maryland
    replace and/or inspect your shocks on your mount. (the white rubber things) You may have ripped one. I had the exact same issue.

    #7 johnnyu, Sep 22, 2015
    Last edited: Sep 22, 2015
  8. Garrie

    Joined:
    Jul 31, 2015
    Messages:
    326
    Likes Received:
    127
    Location:
    Singapore
    I'm suspecting that your gimbal has malfunctioned. Try doing a recalibration of your gimbal and see if it helps.

  9. phantom13flyer

    Joined:
    May 26, 2015
    Messages:
    1,351
    Likes Received:
    404
    And an IMU calibration too

    johnnyu likes this.
  10. phantom13flyer

    Joined:
    May 26, 2015
    Messages:
    1,351
    Likes Received:
    404
    Also tighten and check every single screw in or around the gimbal

  11. Daniel Dash

    Joined:
    Sep 8, 2015
    Messages:
    16
    Likes Received:
    6
    Location:
    Marbella / Spain
    Ok. I think Ive figured out. Probably ist a fault of a yaw arm.
    When I power on and gimbal does start up calibration the yaw arm is not moving at all.
    I can move it manualy by my fingers but I have to put some foce to do that.
    So what next? :)

  12. johnnyu

    Joined:
    Aug 5, 2015
    Messages:
    79
    Likes Received:
    12
    Location:
    Baltimore Maryland
    screw too tight? sometihng caught in the mech? air blow it out? or something bent.

  13. Daniel Dash

    Joined:
    Sep 8, 2015
    Messages:
    16
    Likes Received:
    6
    Location:
    Marbella / Spain
    Yep, it was that. Ive temporarily removed small plastic hood and it works like new. But what next? The arm doesnt look like bend or something. Is there any screw to loose it up?

    [​IMG]


    Attached Files:

    • yaw.JPG
      File size:
      384.3 KB
      Views:
      61
  14. johnnyu

    Joined:
    Aug 5, 2015
    Messages:
    79
    Likes Received:
    12
    Location:
    Baltimore Maryland

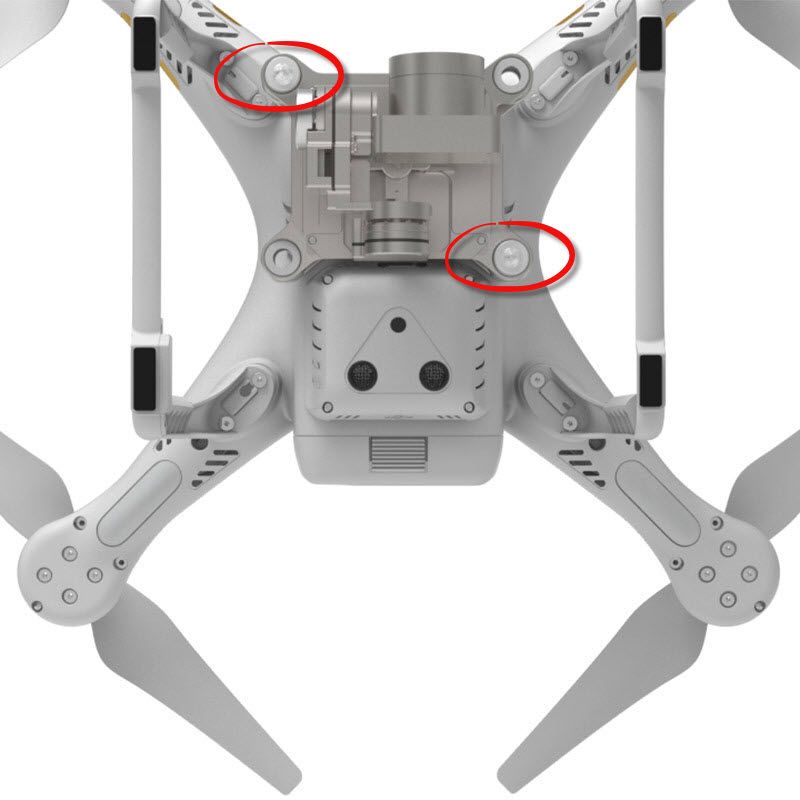

    Where are you plastic antidrop clips at? The ones that diagonally sit on the shocks? I dont see one of them. Or are you missing both? You know what I'm talking about? The clear pins that goes through the white shocks?

    #14 johnnyu, Sep 22, 2015
    Last edited: Sep 22, 2015
    Oso likes this.
  15. suck it up

    Joined:
    Apr 25, 2015
    Messages:
    324
    Likes Received:
    72


    Good Spot! I bet one of the white shocks are torn also

  16. Daniel Dash

    Joined:
    Sep 8, 2015
    Messages:
    16
    Likes Received:
    6
    Location:
    Marbella / Spain
    I removed them just for camera inspecting. Replaced also all rubber shock absorbers.

    Oso likes this.
  17. johnnyu

    Joined:
    Aug 5, 2015
    Messages:
    79
    Likes Received:
    12
    Location:
    Baltimore Maryland
    Your arm may be bent. Looks like it took a hit. Someone else will have to chime in on the specs of a non-bent one. It could be as simple as bending it back in place, but I dont advocate that for liability purposes.

  18. Roverggm

    Joined:
    Jan 21, 2016
    Messages:
    10
    Likes Received:
    1
    Yes there is a set screw that will allow you to move the arm away from the cover

  19. Arcticm39

    Joined:
    Feb 16, 2016
    Messages:
    55
    Likes Received:
    12
    Location:
    Maui
    Yes, you can loosen the set screw on the shaft that connects to the yaw arm and drop the yaw arm a bit lower to clear the obstruction.
