[Question] How to pull out "height" "H/S" "V/S" data?

Discussion in 'Pro/Adv Discussion' started by TerryH, Jun 15, 2015.

  1. TerryH

    Joined:
    Jun 2, 2015
    Messages:
    14
    Likes Received:
    5
    Trying to add height, horizontal speed and vertical speed to my video... Anybody knows how pull out these data from DJI Pilot?

  2. saylor

    Joined:
    Jun 4, 2015
    Messages:
    103
    Likes Received:
    11
    Location:
    GARLAND TEXAS BABY ! ! ! 1
    +1
    can the overlay/app window be captured in any way in sync or at the same time as the video feed?

  3. vegas-k9

    Joined:
    May 21, 2015
    Messages:
    112
    Likes Received:
    58
    Sometimes it will record your data as a "subtitle" for your video. Scan the settings again because I can't remember but I definitely saw an overlay with GPS cords and hs vs and agl. And the only way to get rid of it was turning English subtitles off.

  4. GadgetGuy

    Joined:
    Jun 18, 2015
    Messages:
    4,444
    Likes Received:
    1,294

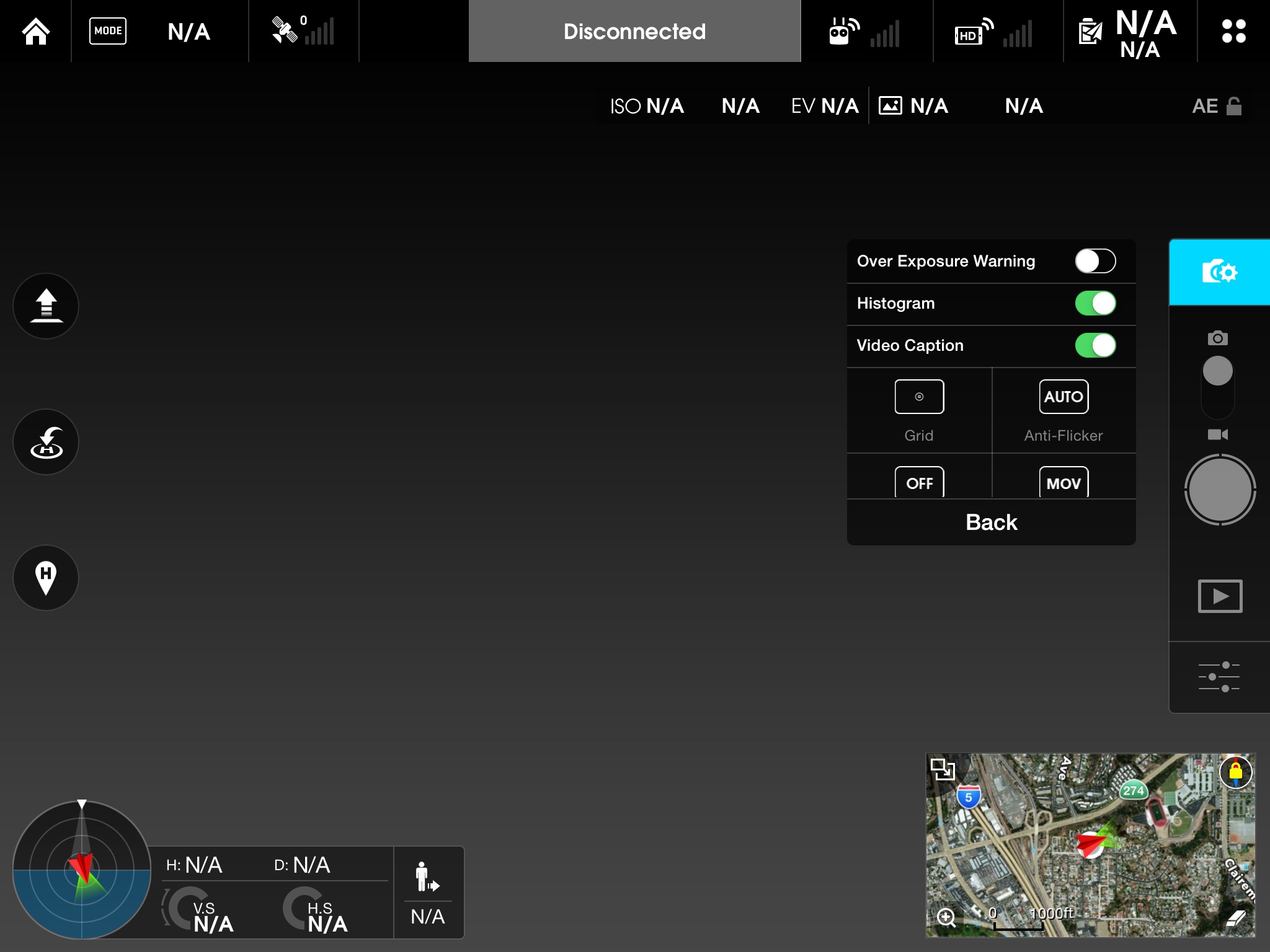

    It's under Camera Settings under Video Caption. Turn it on. Creates a separate .SRT file for each video, which contains sync'd flight data and camera settings, which can be displayed over the video as an optional subtitle, depending upon your video player. It's basically latitude and longitude, as well as altitude in meters, and exposure information.

    taroh likes this.
  5. saylor

    Joined:
    Jun 4, 2015
    Messages:
    103
    Likes Received:
    11
    Location:
    GARLAND TEXAS BABY ! ! ! 1
    wow killer answers - thanks for the help on that.

  6. GadgetGuy

    Joined:
    Jun 18, 2015
    Messages:
    4,444
    Likes Received:
    1,294
    You're welcome! Just giving back what others have helped me with previously!
    :rolleyes:

  7. happydays

    Joined:
    Jul 5, 2013
    Messages:
    1,845
    Likes Received:
    655
    Location:
    Warrenpoint, Ireland
    I tried to extract the data (iOS) via iTunes as a text file, then used one of the convertors (litchi) to export to .csv - but the data looked goofy. I'll post the log.

  8. happydays

    Joined:
    Jul 5, 2013
    Messages:
    1,845
    Likes Received:
    655
    Location:
    Warrenpoint, Ireland
    Here's the flight log - as you can see, a lot of the data doesn't change. ImageUploadedByPhantomPilots1435748931.044243.jpg


    Attached Files:

  9. GadgetGuy

    Joined:
    Jun 18, 2015
    Messages:
    4,444
    Likes Received:
    1,294
    Is that from the internally recorded P3 blackbox .DAT file or the Mini SD card recorded Video Caption .SRT file?

  10. happydays

    Joined:
    Jul 5, 2013
    Messages:
    1,845
    Likes Received:
    655
    Location:
    Warrenpoint, Ireland
    From the app. In iTunes, select the device, then apps and at the bottom of the screen there is an option to select apps that share files. Open that up and then you can export the txt file out. Just that mine didn't give out great information.

  11. GadgetGuy

    Joined:
    Jun 18, 2015
    Messages:
    4,444
    Likes Received:
    1,294
    I don't do iTunes. So that must be the .SRT file, if you have video caption turned on, except the .SRT fle only gets recorded to the micro SD card, along with the video. What is the file extension of the file you are seeing? Is it .txt? Have you instead looked at the .DAT log file on the P3P that corresponds to the flight? You need to use the Pilot app to put the P3 into "Enter Flight Data Mode", under Advanced Settings, and then hook up the DJI supplied USB cable to the P3 and your computer and copy them off. You'll need a program to read them, which can be found at www.MapsMadeEasy.com/log_viewer but it only plots some of the data and shows the map of the flight. Anyone have access to a .DAT file reader that will convert it to .csv?

    #11 GadgetGuy, Jul 1, 2015
    Last edited: Jul 1, 2015
  12. 30secs

    Joined:
    Jun 12, 2015
    Messages:
    889
    Likes Received:
    113
    I use vlc.. Any idea how to display srt or what app to use on win8?

  13. saylor

    Joined:
    Jun 4, 2015
    Messages:
    103
    Likes Received:
    11
    Location:
    GARLAND TEXAS BABY ! ! ! 1
    AFAIK it should open in notepad or wordpad. i havent messed with all this yet - yesterday i had to watch a soccer game :)

  14. happydays

    Joined:
    Jul 5, 2013
    Messages:
    1,845
    Likes Received:
    655
    Location:
    Warrenpoint, Ireland
    In VLC - go to Video - Subtitles Track - and click on each option until the subtitle appears on screen. It's quite big.
