Plan Mission in Google Earth, convert, import to Litchi Mission Hub

Discussion in 'Pro/Adv Discussion' started by FredB, Mar 27, 2016.

  1. FredB

    Joined:
    Mar 27, 2016
    Messages:
    8
    Likes Received:
    5
    Vis.jpg I wanted to be able to draw a path in Google Earth and import that into Litchi Mission hub, I also wanted the path to automatically follow the terrain, maintaining a set distance above the ground at each point.

    It takes a few steps but it seems to work.

    USE AT YOUR OWN RISK. Check all waypoints and settings in Litchi to make sure your points and altitudes are correct. Note that the DEM elevation data is not exact and could cause you to misjudge ground elevations.

    Here is a link to the spreadsheet that has instructions and does most of the work. I use Open Office Spreadsheet and that is the format it is in:

    http://logdovetailjig.com\utility.ods

    Here is a version I saved in Excel format. I have not tested this version since I don't have excell

    http://logdovetailjig.com/utility.xls

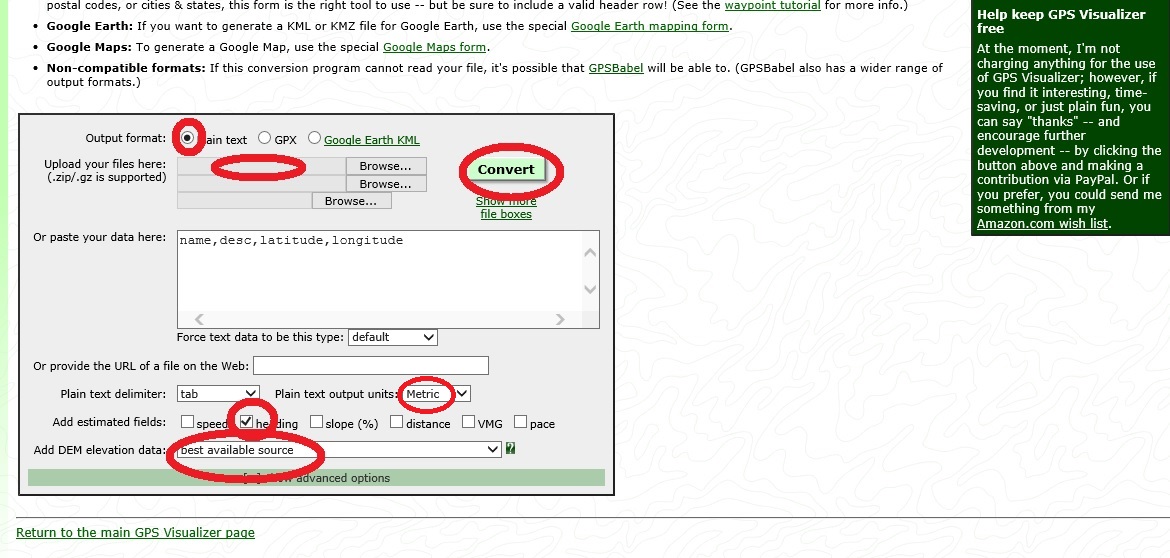

    Thanks to Adam Schneider at GPSVisualizer for his help and conversion tools.

    See screenshots below.



    GE screenshot.jpg MH screen.jpg View attachment 48714

    #1 FredB, Mar 27, 2016
    Last edited: Mar 30, 2016
  2. Richard Gozinya

    Joined:
    Mar 11, 2016
    Messages:
    207
    Likes Received:
    96
    Location:
    Lawrence, Kansas USA
    Thanks for posting this. Nice work. I'm still trying to digest it.

  3. FredB

    Joined:
    Mar 27, 2016
    Messages:
    8
    Likes Received:
    5
    Using Google Earth is nice because you can see the ground in 3D

    The first few times it seems like a lot of steps and kind of slow but after you get used to doing it, it is a pretty fast process. It would be nice if Litchi had a terrain follow option in the mission hub.

  4. skysense

    Joined:
    Feb 16, 2016
    Messages:
    43
    Likes Received:
    12
    Location:
    Planet Earth
    Great stuff, thanks!

    It would be nice if Litchi had PC/MAC software that utilizes google earth/maps like 3DR Robotics MissionPlanner :)

    #4 skysense, Mar 28, 2016
    Last edited: Mar 28, 2016
  5. FantomFlier

    Joined:
    Mar 21, 2016
    Messages:
    230
    Likes Received:
    76
    I was able to create a mission using Excel and it worked fine first time. I have visually compared it to real missions I have flown at the same venue, and it looks good.
    There are a lot of steps, and obviously the POIs and actions need to be added still, but I am sure it can be refined, perhaps by Litchi and Adam Schneider at GPSVisualizer collaborating.

  6. Roamer105

    Joined:
    Mar 10, 2016
    Messages:
    129
    Likes Received:
    25
    I setup a complicated course through mountainous terrain that resulted in 37 segments on Google Earth, exported it, converted it and then processed it with EXCEL. It worked perfectly. I tried to compress some of the steps and here is what I found: You can copy the converted output directly to a new Excel window. At this point it is text. Click on "Format as Table" and then copy the results directly into your spreadsheet copy area. Then select and copy the results into Notepad and save it for Mission Hub to import. It works great!

  7. FredB

    Joined:
    Mar 27, 2016
    Messages:
    8
    Likes Received:
    5
    I am not sure what the maximum number of points is that Litchi allows but the spreadsheet is limited to 100. That could be increased if need be but I doubt there will be a need any time soon.

    edit- the sheet will currently handle 99 waypoints

    #7 FredB, Mar 28, 2016
    Last edited: Mar 29, 2016
  8. Roamer105

    Joined:
    Mar 10, 2016
    Messages:
    129
    Likes Received:
    25
    99 waypoints.

  9. FredB

    Joined:
    Mar 27, 2016
    Messages:
    8
    Likes Received:
    5
    rel.jpg I corrected an error in the spreadsheets today. The links above will take you to the corrected versions.

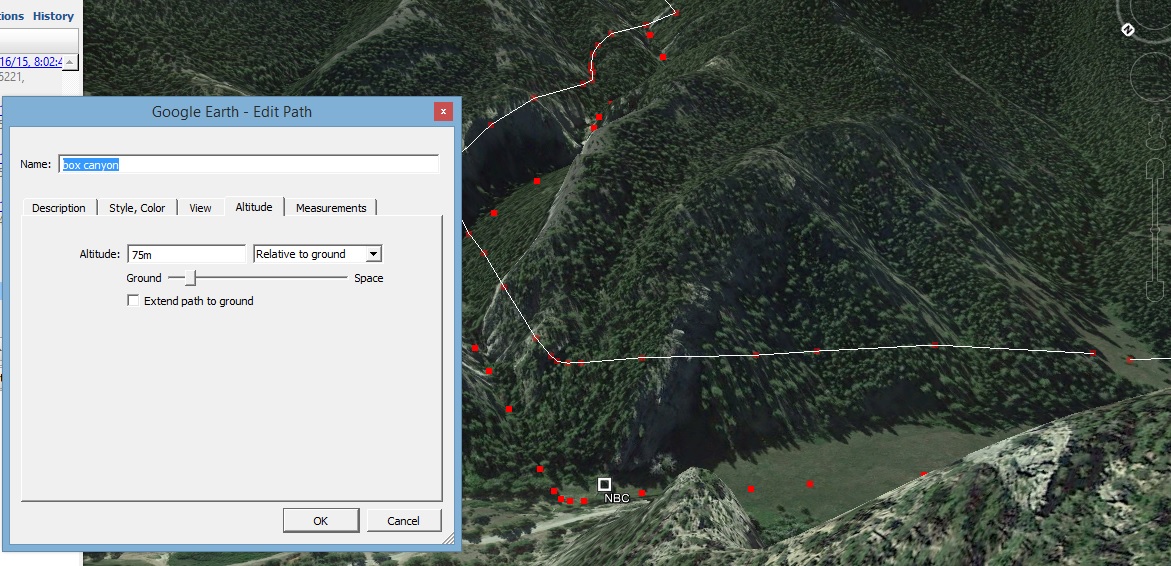

    Also, a nice feature in Google Earth is setting the altitude to "Relative to Ground" and entering in your height above ground. This let's you visualize the actual path of the drone in the air.

    Don't forget that the elevations always have some error so leave plenty of room to clear obstacles.

    #9 FredB, Mar 29, 2016
    Last edited: Mar 29, 2016
  10. FantomFlier

    Joined:
    Mar 21, 2016
    Messages:
    230
    Likes Received:
    76
    I do not find the 'Edit Path' window anywhere. Is it universal?

  11. sonof40

    Joined:
    Oct 22, 2015
    Messages:
    516
    Likes Received:
    82
    Location:
    San Ramon, CA
    Not exactly sure what you did. What was step one?

    #11 sonof40, May 1, 2016
    Last edited: May 1, 2016
  12. PVFlyer

    Joined:
    Jan 27, 2014
    Messages:
    1,484
    Likes Received:
    125
    Location:
    Hong Kong
    FPV Camera can get all these done in the app at a glance without extra steps.

    [​IMG]
    • Home Elevation: Elevation of planned home point. Once home point is changed or updated upon connecting to RC/aircraft, the elevation and all corresponding AGL of waypoints and targets (POIs) are updated accordingly. The screenshot shows 693m elevation at home point.
    • Waypoint Ground Elevation: Ground level elevation of waypoint. The screenshot shows 794m at waypoint-1 and 884m at waypoint-2 respectively.
    • Target (POI) Ground Elevation: Ground level elevation of target (POI). The screenshot shows 932m at target-1, which is a weather radar station at the peak of mountain. With accurate target (POI) ground elevation, Auto-Tilt gimbal control can focus the targets right at the center of your footage even in various elevation terrain.
    • Height: This is normal planned Height of waypoints and targets above/below home point (as known as AHL - Above Home Level). All waypoint/target/panorama height settings are based on home point. The screenshot shows 150m at waypoint-1 and 180m at waypoint-2 respectively. When you set/adjust the height of waypoint/target/panorama, AGL of waypoint/target/panorama is updated accordingly.
    • AGL (Above Ground Level): This is planned altitude of waypoints and targets above/below the terrain (calculated per Home Elevation + Height - Waypoint/Target Ground Elevation). The screenshot shows 49m at waypoint-1 and -11m at waypoint-2 respectively, while negative value means below terrain elevation. If we fly this mission, aircraft will crash into mountain/tree between waypoint-1 and waypoint-2. AGL also excludes trees, buildings, power line towers or any obstacles in the field, which should be taken into account in planning stage.

    #12 PVFlyer, May 1, 2016
    Last edited: May 1, 2016
    Yeager74 likes this.
  13. Michel Rivet

    Joined:
    Nov 30, 2015
    Messages:
    89
    Likes Received:
    5
    I will try this thanks

  14. DonaldictTrumperbatch

    Joined:
    Jun 1, 2016
    Messages:
    70
    Likes Received:
    20
    I'm just wondering, if the ground level is not changing too much isn't this google earth approach rather a disadvantage for smooth videos? If the phantom keeps ascending and descending it will just add unnecessary motion in the video, and who cares whether you are 50m or 47 or 52 above ground.

  15. TnHwyman

    Joined:
    Jun 3, 2015
    Messages:
    81
    Likes Received:
    17
    Location:
    East Tennessee (USA)
    Sir, Thank you ever so much for this post. This east Tennessee (USA) Hillbilly appreciates it.

  16. SpectralSky

    Joined:
    Nov 5, 2016
    Messages:
    1
    Likes Received:
    0
    Hate resurrecting an old thread but I found this to be useful and instead of following the excel spreadsheet procedure listed above, I wrote a script that does it for you. It's very easy to use, but it is not very robust - i.e. you can break it pretty easily if you try. feel free to give me some feedback if it doesn't work for you.

    http://spectralsky.com/kml-to-csv/
