    I just released a new product -- battery covers to protect the terminals on your Phantom 3 batteries. While most people will use them while traveling on airlines (since the FAA requires the terminals to be covered), they might also be useful in other scenarios where you want to keep the terminals protected.

    Like my other products, all I'm asking is for you to cover the cost of shipping. However, you're certainly welcome to make a donation if you would like to support my mission to create more unique Phantom products :)



    You can find more details and/or order a battery cover at:
    www.PhantomHelp.com/P3BatteryCovers

    #1 msinger, Jan 25, 2016
    Last edited: Apr 2, 2016
    Cale262 likes this.
  2. msinger

    Approved Vendor

    Joined:
    Oct 30, 2014
    Messages:
    19,020
    Likes Received:
    5,596
    Location:
    US
    Just click the link above :)

  3. Gaffer

    Joined:
    Dec 28, 2015
    Messages:
    7
    Likes Received:
    2
    Location:
    Long Island, NY
    They look great. I have always worried about those 2 contacts sticking out exposed

    I just ordered 6 of them

  4. generaltso

    Joined:
    Jan 11, 2016
    Messages:
    114
    Likes Received:
    18
    Location:
    Vermont
    I just ordered a 4-pack. Thanks!

  5. John Locke

    Joined:
    Jun 26, 2015
    Messages:
    2,962
    Likes Received:
    1,111
    Location:
    Yorba Linda, CA
    Although it's logical to cover the contacts to increase safety, and I'm all for that, I haven't see the airline regulation specifically stating they must be covered, "only protected against short". It could be argued the design of the battery protects again short, since the brass contacts are recessed, virtually impossible to short unless you try.

    I travel with my Phantom all the time and one time TSA looked at my 4 batteries and said nothing about covering the contacts. Maybe it was because they were held snugly in my backpack insert, which is another way of protecting against short in their eyes.

    Can you disclose the thickness of the male plastic blades that slide into the female battery contacts? What is the thickness of the Phantom male brass contact in comparison? It appears the end of that plastic blade looks square instead of tapered like the Phantom male blade. Can you provide a closeup photo of the end of the plastic blade?

    Interesting product, nice idea. However I'm hesitant to insert plastic into the brass contacts, introducing the possibility of plastic wear residue on the contacts over time. However I might be too **** on that concern, not sure. I've never seen anyone else do this, thinking there might be a reason. Too bad there's not another way to securely clip a cover over the contacts without the need to insert plastic into the female contact.

  6. Imabiggles

    Joined:
    Oct 11, 2013
    Messages:
    299
    Likes Received:
    84
    I wonder if having the spade "pins" a bit shorter would be a good idea. still enough to grab, but if one of the long ones snap, it would be a PITA to get it out. Also saves on filament. Nice job BTW!

  7. msinger

    Approved Vendor

    Joined:
    Oct 30, 2014
    Messages:
    19,020
    Likes Received:
    5,596
    Location:
    US
    I'm assuming storing them in battery slots within a case is good enough. If you store your batteries loosely in a carry-on bag, then the battery contacts need to be covered (according to the FAA).

    They are about .1 mm thinner than the blades in the Phantom.

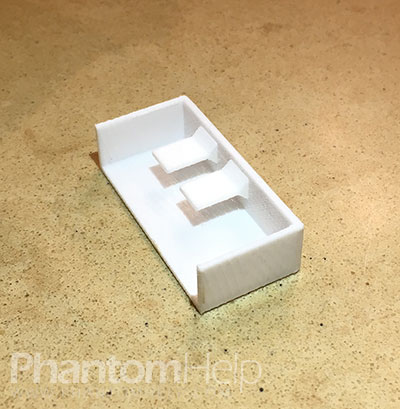

    Here's the model:


  8. msinger

    Approved Vendor

    Joined:
    Oct 30, 2014
    Messages:
    19,020
    Likes Received:
    5,596
    Location:
    US
    I think I could make them a little shorter, but probably not much. I don't think that'll make them less prone to breaking though. I went through about 10 iterations until I came up with this design. Applying excessive force to the side of the plastic pins would definitely snap them off -- but, you'd have to be trying to damage them. They are pretty strong.

    LWC1496 likes this.
  9. John Locke

    Joined:
    Jun 26, 2015
    Messages:
    2,962
    Likes Received:
    1,111
    Location:
    Yorba Linda, CA
    I like the idea of making them a little shorter. But I suggest consider making them .5mm or .7mm thinner and see if they stay in place, the thinner the better, while providing enough friction to hold them in place. I'd also recommend tapering the end a little for easier insertion, less stress to the Phantom contacts and less wear to the plastic that might leave residue. Something similar to this below, left side.

    #9 John Locke, Jan 25, 2016
    Last edited: Jan 25, 2016
  10. msinger

    Approved Vendor

    Joined:
    Oct 30, 2014
    Messages:
    19,020
    Likes Received:
    5,596
    Location:
    US
    Thanks for the ideas. Keep in mind that making parts thinner often makes them more brittle. I'm always up for some experimenting to make the parts better though :)

  11. Wolfiesden

    Joined:
    Jan 12, 2016
    Messages:
    1,187
    Likes Received:
    400
    Location:
    Milwaukee, WI, Ft Walton Beach, FL
    I would also be worried about wear on the gold plating by the plastic which typically is rather abrasive.

  12. Wolfiesden

    Joined:
    Jan 12, 2016
    Messages:
    1,187
    Likes Received:
    400
    Location:
    Milwaukee, WI, Ft Walton Beach, FL
    Are the STLs available for us to print?

    Derbyrammy likes this.
  13. msinger

    Approved Vendor

    Joined:
    Oct 30, 2014
    Messages:
    19,020
    Likes Received:
    5,596
    Location:
    US
    Wouldn't the metal tabs be more abrasive? As far as I know, the metal tabs don't cause any issues.

    No.

  14. John Locke

    Joined:
    Jun 26, 2015
    Messages:
    2,962
    Likes Received:
    1,111
    Location:
    Yorba Linda, CA
    I highly doubt DJI used gold plated contacts. They are likely standard brass contacts.

  15. msinger

    Approved Vendor

    Joined:
    Oct 30, 2014
    Messages:
    19,020
    Likes Received:
    5,596
    Location:
    US
    For those that have received these, do you have any comments on them? I haven't heard anything, so I'm assuming you are all enjoying them :)

  16. Derbyrammy

    Joined:
    Feb 3, 2016
    Messages:
    9
    Likes Received:
    3
    I am a bit confused as to why you say on your website "Why is this free?
    Phantom Help wants to help you fly safely—and fly with peace of mind." But when asked if you will release the STL file so we can print our own you say no.
    Is this just because you think someone will print them and sell them?
    I would be interested in printing my own rather than shipping a "free" one all the way to the UK.
    Great design work by the way.


    Sent from my iPad using PhantomPilots mobile app

  17. msinger

    Approved Vendor

    Joined:
    Oct 30, 2014
    Messages:
    19,020
    Likes Received:
    5,596
    Location:
    US
    Right. I don't share my models. Sorry :(

    Dirty Bird likes this.
  18. With The Birds

    Joined:
    Jan 4, 2016
    Messages:
    2,608
    Likes Received:
    742
    Location:
    Australia
    This is a great idea and what you offer to the community here by way of advice and innovative products is amazing.

    The contacts may well be Phospher Bronze or Berryllium Copper in preference to brass, principally due to the expected number of make/break connectiins in service, the reliance on spring tension for reliable connection and corrosion resistance given the expected operating environment. Both alternatives are provide improved abrasion resistance also. This is one instance where i wouldnt be adverse to inserting a plastic component into a female receptacle. Even if the size is slightly larger it will almost certainly be within the design limits of the spring contact.

    Fully appreciate your reluctance to share the tool path. Others may well have their own take on how this solution may be implemented and i would encourage them to develop and share their solution.

  19. generaltso

    Joined:
    Jan 11, 2016
    Messages:
    114
    Likes Received:
    18
    Location:
    Vermont
    They fit great. Perfect amount of tension to hold them in position securely without having to force them in or out. Not sure how necessary they really are, but I like them!

  20. msinger

    Approved Vendor

    Joined:
    Oct 30, 2014
    Messages:
    19,020
    Likes Received:
    5,596
    Location:
    US
    Good to hear!

    The idea is to use them for when traveling via a plane and carrying them loosely in a carry-on bag. But, you could really use them in any scenario where you need to protect the battery terminals.
