    ok so i spent a few weeks digging for information and frankly on the p4 there wasn't a ton of info available. my setup is as follows:
    2 x 2800 mah maxamps lipo
    1 icharger 106b+
    1 progressive rc charger 350
    1 pair of maxxuav battery wings
    1 parallel charging board
    this was almost 400 dollars in parts to do the mod and i really didn't want to pay another 250 to have it professionally done.
    there's some good videos online to do the teardown i highly recommend this one:



    here's a picture of my shell taken off the bird and ready for the battery wiring to be done
    (see thumbnails below)


    the only part of the entire project i found a little hard was trying to get the new wires soldered onto the circuit board. i highly recommend not going to the board because the amount of heat required to do it can very easily damage the delicate electronics. what i did was a t wire splice where you basically strip back some of the wire in the wire that's already soldered and spice your wire that you will route outside the bird to that stripped area. if you put the soldering pencil under this splice and let it heat up you can solder them together perfectly! one thing to remember the bigger the glob doesn't mean the better the job! here's a good link of what it should look like.

    http://1.bp.blogspot.com/-FX5n0wprwaE/VE6RcmuhP3I/AAAAAAAARrI/cHy_Xb2ifuc/s1600/T+Joint.jpg


    i also found that soldering the xt60 connectors onto the wires was a little tuff to not get the heat shrink to shrink from the heat because i was worried about weight i tried to make my wires short as possible. here's some pictures of the finished work.
    (see thumbnails below)


    from my research on here i've realized that the phantom 4 is a little weaker at carrying the weight than the phantom 3. i was sold on the 1800-2250 mah batteries and i pulled the trigger on the 2800 mah pair. they were 85 dollars each so if they turn out to be to heavy i guess i'm buying a p3 to use them in!


    here's a picture of the charger, power supply and the maxamps batteries
    (see thumbnails below)



    the completed setup ready for my first flight wish me luck
    (see thumbnails below)

    Photo Aug 14.jpeg Photo Aug 14-2.jpeg IMG_3593.JPG image.jpeg


    Attached Files:

    #1 josephtarlecky, Aug 25, 2016
    Last edited: Aug 26, 2016
    nickyb likes this.
  2. josephtarlecky

    Joined:
    May 16, 2016
    Messages:
    46
    Likes Received:
    24
  3. josephtarlecky

    Joined:
    May 16, 2016
    Messages:
    46
    Likes Received:
    24
    13.6 miles with some juice to spare :)

  4. Fanti

    Joined:
    Nov 18, 2013
    Messages:
    195
    Likes Received:
    42

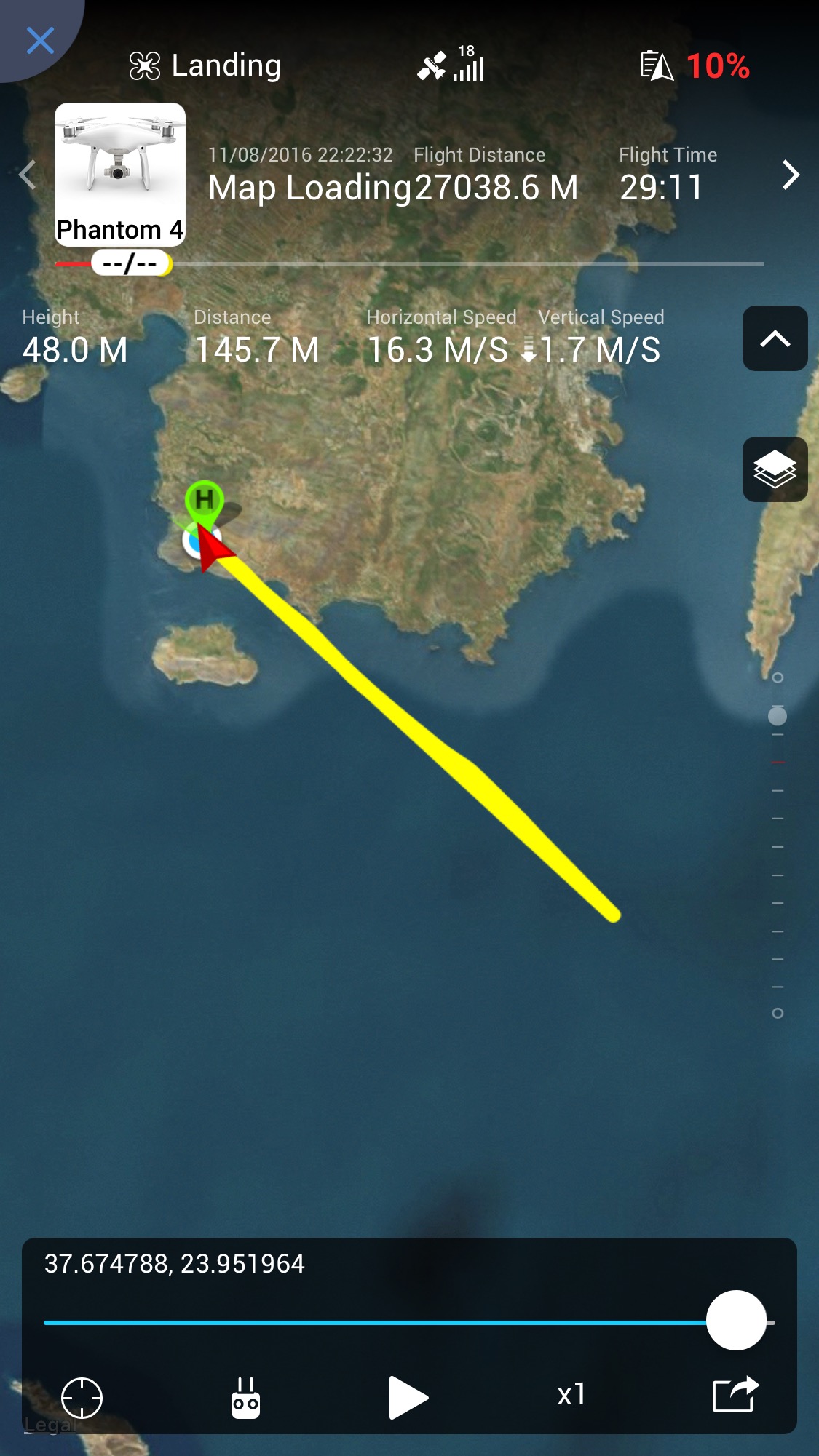

    image.jpeg 16.8 miles with juice to spare :)

  5. vjs

    vjs

    Joined:
    May 5, 2016
    Messages:
    3
    Likes Received:
    0
    Can you fix the URLs from dropbox please. We can not see them :)

  6. josephtarlecky

    Joined:
    May 16, 2016
    Messages:
    46
    Likes Received:
    24
    Very very nice what batteries are you using?

  7. josephtarlecky

    Joined:
    May 16, 2016
    Messages:
    46
    Likes Received:
    24
    Yes I will as soon as I get to my office! Sorry links didn't work!

    vjs likes this.
  8. Fanti

    Joined:
    Nov 18, 2013
    Messages:
    195
    Likes Received:
    42
    Multistar 6600

  9. josephtarlecky

    Joined:
    May 16, 2016
    Messages:
    46
    Likes Received:
    24
    that's a lihv right? do you need to drain battery to use it. that one weighs almost the same as my 2800 pair and 1000 more mah, decision decisions :)

  10. Fanti

    Joined:
    Nov 18, 2013
    Messages:
    195
    Likes Received:
    42
    Lihv yes. Charge to 4.32V or so.

  11. josephtarlecky

    Joined:
    May 16, 2016
    Messages:
    46
    Likes Received:
    24
    the 4s 2800 maxamps charge to 4.2 each so charging the lihv to 4.32 would offer a slight advantage in capacity correct?

  12. TheLightSpeedz

    Joined:
    Jan 24, 2016
    Messages:
    1,186
    Likes Received:
    366
    Hey Joseph! I've been looking for a tutorial to do this myself...

    Here's what I'm wondering-

    1. Do you have any pics of where you soldered the wires?
    2. Do you have any pics once you got it all done, but before you out the shell back on.
    3. I assume what you do to one side you do to the other?
    4. Had any issues?
    5. Cracking? Anything not working?

    More pics would be great!


    Sent from my iPhone using PhantomPilots

  13. rossco83

    Joined:
    Oct 18, 2016
    Messages:
    8
    Likes Received:
    0
    Nice mad thanks for sharing. How much do your 2800mah batteries weigh each?
    How much more flight time has been now added to your 'bird'?
    And have you noticed any adverse effect with the motors having to work harder to carry the extra weight?

  14. rossco83

    Joined:
    Oct 18, 2016
    Messages:
    8
    Likes Received:
    0
    Was that trip just flat out in sport mode?
