P3 Vision Positioning System overheat ?

Discussion in 'Pro/Adv Discussion' started by Velociraptor, Mar 11, 2016.

  1. Velociraptor

    Joined:
    Mar 1, 2016
    Messages:
    6
    Likes Received:
    0
    Location:
    Brazil
    I´ve been flying multirotors now for over 4 years but just bought my first Phantom.
    3 PRO model W323A with all the latest firmwares updated.
    I did the first flight yesterday before dawn and I noticed battery came out really hot, unconformable to hand but I didn´t check the battery temperature during flight. Today another quick flight just before the rain started and same thing, battery came out really hot but again I forgot to check temperature in the app. Wookong, Naza and A2 doesn´t have this feature, so I´m not used to.
    But in all this years I never seen a multirotor battery getting so hot!
    Now at home, checking all the DJI GO detailed configurations, I noticed the battery temperature was reaching almost 50C while the Phantom was sitting on the room table with power on.
    After trying to find what could cause such battery heat I noticed the Vision Positioning module was so hot that almost burned my fingers when touching the ultrasonic sensor! And the VPS wasn´t even active in the app as I had it switched off long before noticing the heat.

    I´m sure this isn´t normal, or is it?

  2. With The Birds

    Joined:
    Jan 4, 2016
    Messages:
    2,618
    Likes Received:
    750
    Location:
    Australia
    Not sure about normal but i do.know that i used the dji flight sim once and could not beleive how hot the area around the VPS got. It was ridiculous.

  3. With The Birds

    Joined:
    Jan 4, 2016
    Messages:
    2,618
    Likes Received:
    750
    Location:
    Australia
    I meant to say, upload your.flight records to healthydrones.com and have a look at the bat temp log there. My phamtom batts run cooler than in RC helis, only ever mildly warm to touch after a flight.

  4. Velociraptor

    Joined:
    Mar 1, 2016
    Messages:
    6
    Likes Received:
    0
    Location:
    Brazil
    Well, that is the only thing I haven´t learned yet, how to extract the flight logs!
    Will do that and post to healthydrones.com to see how it goes.
    But I´m sure there is something wrong, with such heat the battery won´t last long, that is if the Phantom doesn´t burn into flames midair on the next flight! o_O

  5. Velociraptor

    Joined:
    Mar 1, 2016
    Messages:
    6
    Likes Received:
    0
    Location:
    Brazil
    After uploading logs to healthydrones.com it seems the battery is reaching 58C while in flight. And ambient temperate this last couple of days has been around 21c at the time of flight. I wonder how hot this battery will get when it´s 38c out there!

  6. With The Birds

    Joined:
    Jan 4, 2016
    Messages:
    2,618
    Likes Received:
    750
    Location:
    Australia
    At 22deg I come down at around 52C after 16mins (I just looked at some recent HD logs).

  7. Velociraptor

    Joined:
    Mar 1, 2016
    Messages:
    6
    Likes Received:
    0
    Location:
    Brazil
    Would be interesting to see how hot the battery goes in a really hot day.
    Do you or anyone else has logs on 35-40c day?
    I think this relates to a design flaw in thermal dissipation within the Light bridge board that I found out sits right between the battery and the VPS. That is the reason the battery gets so hot.
    I really wanted a hot day to test this out and see what would happen with my little new Phantom but summer is finishing here, no more 40c days!

  8. Velociraptor

    Joined:
    Mar 1, 2016
    Messages:
    6
    Likes Received:
    0
    Location:
    Brazil
    OK, I disconnected power cable to VPS today and went for another test flight.
    Today ambient temperature was 30C, the VPS didn't heat at all and battery temperature reached 57c even do I was flying full speed of 18m/s most of the time.
    Hopefully tomorrow will be another hot day and I will reconnect power to VPS and do another test flight to see how the battery will behave.

  9. Mako79

    Joined:
    May 16, 2014
    Messages:
    3,418
    Likes Received:
    568
    Location:
    Sydney Australia
    Maybe they forgot to connect the tiny VPS module fan. I'm being serious, as I forgot to connect mine when I did the crack-shell transplant.

  10. Velociraptor

    Joined:
    Mar 1, 2016
    Messages:
    6
    Likes Received:
    0
    Location:
    Brazil
    It is connected. I'm not sure if it takes the air out of the battery to the Lightbridge board or the oposite, but it is really small and has nothing to do with the VPS.
    This is another point that should have improved in the P4. So much heat is not only dangerous but degrades the battery and must have a noticeble impact in flight autonomy.

  11. Yiannis.B

    Joined:
    Jun 14, 2016
    Messages:
    39
    Likes Received:
    17
    Location:
    Athens - Greece
    Any updates? Disconnecting the power to the VPS module, solves the problem?

    Mine is also too hot, but it seems that lightbridge module generates the heat.

  12. robinb

    Joined:
    May 10, 2014
    Messages:
    2,907
    Likes Received:
    503
    Location:
    A place in the sun
    Something is not right with your drone.
    The VPS does not get hot.
    Its should be air temp.

    with an air temp of 27 deg C my battery rises to 44 deg after 15 minutes fast flying.

  13. RocketBrew

    Joined:
    Nov 24, 2015
    Messages:
    422
    Likes Received:
    224
    Location:
    Arizona

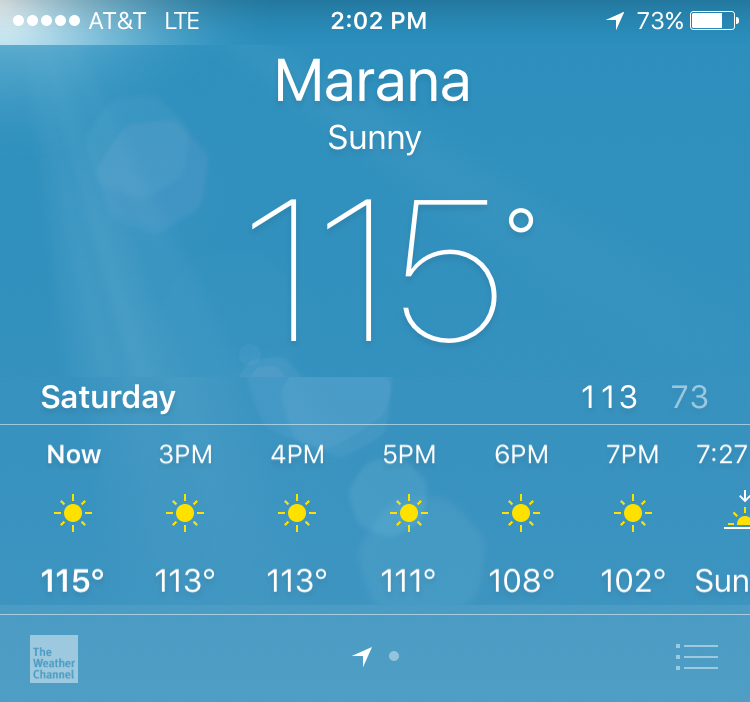

    I went out to give the heat a test. It was about 115° F (46°C).
    Flew out 16,100' and turned back because of the battery level. Was headed into the wind on the way out, so I went past the return-to-home warning since I would have the wind behind me (HD shows Average Wind Speed 21.7 mph, Max Gust Speed 31.4 mph).

    On the way back, still had 3,126' to go when I got Overheated During Discharge and "Warning: Propulsion Output Limited. Aircraft motility has been lowered."

    Suddenly wasn't sure I was going to get all the way back at the reduced speed! But I landed with 14% battery.

    HD shows the Max Battery Temperature was 161.5° F (72°C).

  14. robinb

    Joined:
    May 10, 2014
    Messages:
    2,907
    Likes Received:
    503
    Location:
    A place in the sun

    Now that is HOT.

  15. CCDD

    Joined:
    Nov 20, 2015
    Messages:
    650
    Likes Received:
    384
    Location:
    US
    Are all of you running the latest FW?

  16. robinb

    Joined:
    May 10, 2014
    Messages:
    2,907
    Likes Received:
    503
    Location:
    A place in the sun
    no, last one 1.8

  17. CCDD

    Joined:
    Nov 20, 2015
    Messages:
    650
    Likes Received:
    384
    Location:
    US
    Perhaps we can start forgetting about cracked shells and begin worrying about melted ones.
