P2V+ Main board not recognized, neither does the receiver and battery error

Discussion in 'Phantom 2 Vision + Help' started by nuilarene, Aug 18, 2016.

  1. nuilarene

    Joined:
    Aug 16, 2016
    Messages:
    6
    Likes Received:
    1
    Location:
    El Salvador
    Hey guys, I'm new here and I found out about you guys recently, i hope somebody's already got this problem.

    I recently got a crashed Phantom 2 V+ for a really cheap price, pretty confident knowing that fixing it would be a walk in the park, man I was so wrong. Camera doesn't work and if I check the Phantom assistant on PC, I noticed that neither the main board and the receiver are recognized, won't even display the 0.0.0.0 error, also the assistant indicates I have the "Not Intelligent Battery" error. I Don't know what to do, I even replaced the main board expecting the problem would be over but nothing has given me a solution.

    I hope someone can help me. Thank you all in advance.

  2. J Dot

    Joined:
    Apr 10, 2014
    Messages:
    1,757
    Likes Received:
    895
    Location:
    Sarasota, FL. USA!
    Hello,
    Wow, slew of problems,
    Let's tackle your first problem:
    BATTERY,
    Without this, might as well not bother trying to fix anything else, we first need POWER.
    So that being said:
    Problem is with your communication pins, somewhere.
    Check list:
    1) are the pins clean?
    ( solution: spray with plastic safe, contact cleaner, use a toothbrush if needed )
    2) are the contact pads clean on battery side?
    ( solution : same as above, but use q-tip instead of toothbrush )
    3) in the crash, has the power terminal/communication block ( part on phantom that battery plugs into ) come loose, broke, or bent?
    ( solution: reset it, fix, or replace )
    4) are the communication pins still spring loaded? Can you push them in and do they spring back?
    ( solution if answer is no, replace! )
    5) is battery FULLY INSERTING INTO PHANTOM? Should be NO gap around battery edge and phantom body!
    ( solution: check for obstruction ( wire, antenna, debris??? ) fix so battery can get FULLY inserted )
    6) check communication pin WIRE, closely for breaks, and at connection points for breaks in wire, connector, or bad solder joint at boards. Look closely. ( make sure connector pins are fully inserted and have not backed out of connector )

    This should solve your non intelligent battery problem.

    Then we will go from there, but we will need more info, and pics of how you wired everything, ect. Maybe something got crossed up somewhere?

    Or possibly more ( unknown ) broken items from the crash?

    But work on battery then let us know, we will get you going again, maybe not tonight, but soon, VERY SOON!

    Lol, but seriously, more than glad to help.

    J Dot
    :cool:

  3. nuilarene

    Joined:
    Aug 16, 2016
    Messages:
    6
    Likes Received:
    1
    Location:
    El Salvador
    Thanks for your reply J Dot! I was out of home by the time I got the reply, sorry for answering pretty late.

    I'm starting to do the diagnostics and following your instructions in the given order. I'm giving you an answer to this post when I'm finished doing the troubleshoting.

    Thanks for such valuable info J Dot!

  4. nuilarene

    Joined:
    Aug 16, 2016
    Messages:
    6
    Likes Received:
    1
    Location:
    El Salvador
    Hi J Dot!

    Tried all the troubleshooting points but no success. Seems the battery voltage is ok and still the main board is not recognized. Is there any other way to keep going? Maybe the problem lies in the FC?

  5. J Dot

    Joined:
    Apr 10, 2014
    Messages:
    1,757
    Likes Received:
    895
    Location:
    Sarasota, FL. USA!
    There are a couple things we could try, but first,
    Can you take some clear up close pics of your wiring connections, inside your bird?
    Maybe something is a miss?

    We might also try a hard reset, requires a jumper wire, from ( place jumper from F1 ( bottom pin ) to F2 ( bottom pin ) turn on phantom ( while hooked to assistant ) ( this tricks naza into thinking it is new and free of any firmware ( shows firmware version 0.00.00 ) , now reinstall firmware, turn off phantom ( REMOVE JUMPER WIRE ). Now turn on phantom should have a clean new firmware install.
    ( but with the problems you are having not sure if it will work? )
    But might be a solution.

    Next
    Are you getting ( 11.1vdc ) at battery?
    Next are you getting ( 11.1vdc ) at mainboard?

    Next,
    If you have a volt meter , do a continuity test on the com wire from battery to mainboard, make sure both wires are in tact, and communicating with motherboard from battery!

    Lastly
    Was the battery in the crash too, or different battery?
    Have you tested with different battery? Or only have the one?

    Let me know and we will proceed!

    J Dot
    :cool:

  6. J Dot

    Joined:
    Apr 10, 2014
    Messages:
    1,757
    Likes Received:
    895
    Location:
    Sarasota, FL. USA!
    Hello
    Here are a few old pics I had, this is a vision non plus, but basically the same only extra pitch wire in pics, just disregard it for your plus.
    But all else should be the same.
    Just use these to cross reference yours to.

    First hard reset:

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Ok
    Naza stuff:

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Fun facts:
    [​IMG]

    J Dot
    :cool:

  7. nuilarene

    Joined:
    Aug 16, 2016
    Messages:
    6
    Likes Received:
    1
    Location:
    El Salvador
    Hey J, I'd like you to see the pictures up close before I do the hard reset. Take a look and let me know if it's ok.
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  8. J Dot

    Joined:
    Apr 10, 2014
    Messages:
    1,757
    Likes Received:
    895
    Location:
    Sarasota, FL. USA!
    Hello,
    Ok I see one issue that jumps out at me,

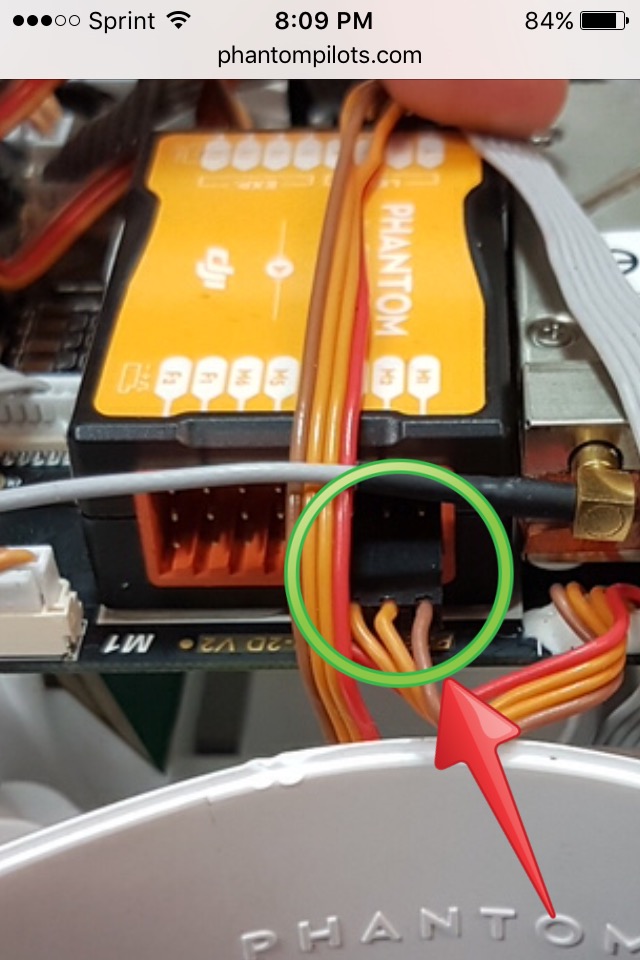

    This wire needs to UNHOOK from circled connector, and plug into where red arrow is pointing to
    ( may also be the reason your camera is not working )
    This cable powers the wifi extender, and is most likely back feeding the mainboard, this can be bad if left.

    Switch it out and try to boot up!

    J Dot
    :cool:

  9. J Dot

    Joined:
    Apr 10, 2014
    Messages:
    1,757
    Likes Received:
    895
    Location:
    Sarasota, FL. USA!
    Found a second issue

    This wire needs to flip 180 degrees
    ( red wire on right, brown wire on left )

    Do this BEFORE you boot up.

    J Dot
    :cool:

  10. J Dot

    Joined:
    Apr 10, 2014
    Messages:
    1,757
    Likes Received:
    895
    Location:
    Sarasota, FL. USA!
    Also
    Don't forget the wifi module set screw, keeps unit from becoming dislodged in a crash or hard landing, tape is more of a insulator/shock absorber, but also carries mounting capabilities, no big deal, just noticed it was missing ( it is the same size as mainboard screws. )

    J Dot
    :cool:

    Keep us updated!

  11. crash1sttime

    Joined:
    Oct 31, 2014
    Messages:
    926
    Likes Received:
    74
    Location:
    Manchester UK
    That's the one my mate had upside down and the quad didn't know how to level itself, end result was on power up the quad just flipped


    Sent from my iPhone using PhantomPilots mobile app

    J Dot likes this.
  12. nuilarene

    Joined:
    Aug 16, 2016
    Messages:
    6
    Likes Received:
    1
    Location:
    El Salvador
    Hey everyone! I did everything J told me to. And indeed the first connector J told me to change solved everything! Worked like a charm.

    The only nuisance now is that the camera is busted and doesn't even turn on. But I'm thinking of adapting a zenmuse gimbal or something, so it's not a big deal (I got that P2 cheap anyway).

    Thank you for your amazing help J. Can't even begin to tell you how thankful I am.

    J Dot likes this.
