Need Antenna help...

Discussion in 'FPV (First Person View)' started by Hjones62, Mar 30, 2015.

  1. Hjones62

    Joined:
    Sep 15, 2013
    Messages:
    240
    Likes Received:
    80
    Location:
    Miami, FL
    Hey Guys, my current set-up is a Phantom 2, H3-3D, GoPro 3, ImmersionRC 600mw 5.8Ghz transmittor, and a 32Ch Black pearl Monitor. Now my question is I'm using the stock antenna's and would like to upgrade to a set of clover leafs or SpiroNet antennas but don't know which connectors I have. I see some sites sell SMA, RP-SMA, etc. I need to know which set to purchase. Any help would be greatly appreciated...

  2. jason

    Joined:
    Oct 12, 2014
    Messages:
    4,099
    Likes Received:
    404
    Location:
    Commerce Twp,MI
    If you buy from FPVLR.com his antennas show which SMA connector you for that TX. The antenna connector on your TX is female input so take the stock antenna off and look at it.

  3. Hjones62

    Joined:
    Sep 15, 2013
    Messages:
    240
    Likes Received:
    80
    Location:
    Miami, FL
    @jason, thanks for the quick reply! I just took off the top 2 antennas on the black pearl and they are male... [​IMG]
    Now I took off the antenna that connects to the transmitter and that is female...
    [​IMG]
    Does that make sense or do I have it the other way around?

  4. dirkclod

    dirkclod Moderator
    Staff Member

    Joined:
    May 9, 2014
    Messages:
    10,627
    Likes Received:
    5,694
    Location:
    Amory Mississippi
    The top picture is gonna need a RP-SMA and the bottom one will need a SMA to hook up according to the pictures on that site .
    RP-SMA=female
    SMA=male

  5. jason

    Joined:
    Oct 12, 2014
    Messages:
    4,099
    Likes Received:
    404
    Location:
    Commerce Twp,MI
    Now check out FPVLR.com for antennas their down Florida. They have some nice antennas.

  6. Hjones62

    Joined:
    Sep 15, 2013
    Messages:
    240
    Likes Received:
    80
    Location:
    Miami, FL
    Really appreciate the help Guys!!

  7. dirkclod

    dirkclod Moderator
    Staff Member

    Joined:
    May 9, 2014
    Messages:
    10,627
    Likes Received:
    5,694
    Location:
    Amory Mississippi
  8. jason

    Joined:
    Oct 12, 2014
    Messages:
    4,099
    Likes Received:
    404
    Location:
    Commerce Twp,MI
    If your there so much then you shouldn't need a bookmark. :) Do you have a quarter interest in it yet? You should!! :D

  9. dirkclod

    dirkclod Moderator
    Staff Member

    Joined:
    May 9, 2014
    Messages:
    10,627
    Likes Received:
    5,694
    Location:
    Amory Mississippi
    No but I think I might have made a house payment for him ;)

  10. MrC

    MrC

    Joined:
    Mar 11, 2014
    Messages:
    469
    Likes Received:
    6
    Location:
    Surrey. UK
  11. jason

    Joined:
    Oct 12, 2014
    Messages:
    4,099
    Likes Received:
    404
    Location:
    Commerce Twp,MI
  12. jason

    Joined:
    Oct 12, 2014
    Messages:
    4,099
    Likes Received:
    404
    Location:
    Commerce Twp,MI
    Come on now I don't think you have paid for the door key yet. :D

  13. dirkclod

    dirkclod Moderator
    Staff Member

    Joined:
    May 9, 2014
    Messages:
    10,627
    Likes Received:
    5,694
    Location:
    Amory Mississippi
    Ya most likely right about that ! Been there and those folks have big bucks !!!!

  14. jason

    Joined:
    Oct 12, 2014
    Messages:
    4,099
    Likes Received:
    404
    Location:
    Commerce Twp,MI
    What this no response from MrC!! He must be thinking of a good one liner.

  15. dirkclod

    dirkclod Moderator
    Staff Member

    Joined:
    May 9, 2014
    Messages:
    10,627
    Likes Received:
    5,694
    Location:
    Amory Mississippi
    Crap ;)

  16. dirkclod

    dirkclod Moderator
    Staff Member

    Joined:
    May 9, 2014
    Messages:
    10,627
    Likes Received:
    5,694
    Location:
    Amory Mississippi
    Done got to deep for me... gonna go fly ;)

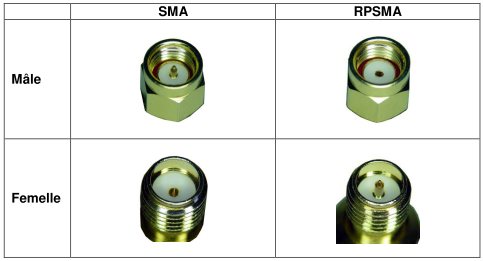

    Femelle :confused:
