Since this will be images of peoples set up lets put it here, no matter what you fly lets see it, this includes controllers also. I will get mine up in the morning and send some images out with the new antennas on it. don't be shy who will go first.

Here's mine :)


Attachments

  • image.jpg
    1.3 MB · Views: 649
As promised, here is my Set up. I like it very clean so all the FPV is installed inside with exception of the Antenna.

This is all whats on it right now.
P2 with zenmuse h3-3d with hero 4 black on it
Has a immersion 600w with Ibcrazy antenna's
Black Pearl 7ch receiver
Iosd mini
Dslr carbon fiber props


Travel_adam said:
As promised, here is my Set up. I like it very clean so all the FPV is installed inside with exception of the Antenna.

This is all whats on it right now.
P2 with zenmuse h3-3d with hero 4 black on it
Has a immersion 600w with Ibcrazy antenna's
Black Pearl 7ch receiver
Iosd mini
Dslr carbon fiber props

Hey Adam do you have any pics of how you did the FPV internally? Did you cut a hole to put antenna through? Thanks :)

check out this thread, posted about my install earlier this week. No i have not cut any holes in it and no it does not over heat.

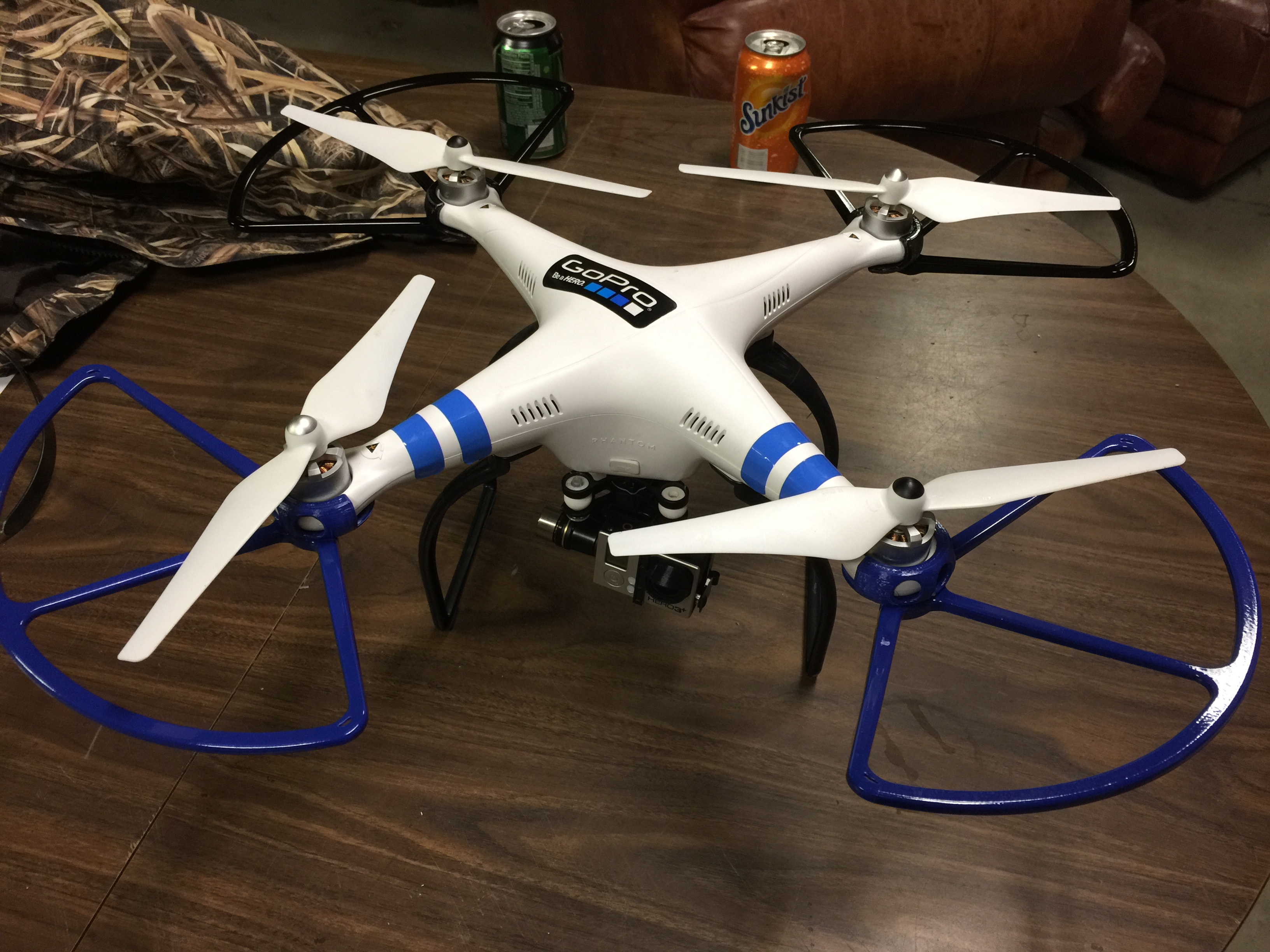

Here is mine. Just got some quick snap on for my prop guards. I just got these just incase im around a crowd.


Attachments

  • IMG_0328.JPG
    1.9 MB · Views: 578
Phantom 2 gopro 3+ H3D3 zenmuse. IOSD ,TK102B GPS tracker. Black Pearl Diversity monitor, horizon antenna set up with black Mamba TX. Reaper Black hydro-dip on both remote and phantom.


Attachments

  • image.jpg
    1.3 MB · Views: 548
  • image.jpg
    135.7 KB · Views: 531
Travel_adam said:
check out this thread, posted about my install earlier this week. No i have not cut any holes in it and no it does not over heat.
So your TX is inside the shell? Have you ever checked the internal temp after a flight? My transmitter heats up like the sun, I would be curious to know what model you used and just how hot it actually gets. Seems like a small area and a lot of additional heat in with all those packed electronics. Myself I have an iOSD, Flytrex Core 2 and a GS Data Link in the shell and it is tight, and that is after I stripped the boxes off of the iOSD & Data Link.

Here is my setup:


P2 V2
H3-3D
IRC 600mw
Black Pearl
Blue Beam + Patch
Hero4 Black
iOSD Mini
Futaba 8FG Super

Pelican case or backpack depending on the shoot.

Basic setup except for the new Samsung tablet I got for Christmas... And a decal set for the controller I got off of eBay (no real value but it looks cool).


Attachments

  • 20141231_110154.jpg
    3.8 MB · Views: 339
  • 20141231_110119.jpg
    4.5 MB · Views: 327
