imu warming up

Discussion in 'General Discussion' started by boxer82003, Dec 9, 2015.

  1. boxer82003

    Joined:
    Nov 22, 2015
    Messages:
    30
    Likes Received:
    0
    Is it normal to have a imu warming up message before the safe to fly message? It can take almost a minute before it goes away.

  2. msinger

    Approved Vendor

    Joined:
    Oct 30, 2014
    Messages:
    19,021
    Likes Received:
    5,599
    Location:
    US
    Yes. You need to redo your IMU calibration while your Phantom is cool. See more details in this video:



    You should allow for more than 5 minutes for it to cool down though. I usually sit mine outside at night for ~30 minutes. If it's hot outside at night where you're located, you can sit it somewhere cool inside. And, by cool, I don't mean the freezer ;)

  3. dirkclod

    dirkclod Moderator
    Staff Member

    Joined:
    May 9, 2014
    Messages:
    10,652
    Likes Received:
    5,705
    Location:
    Amory Mississippi
    If you are speaking of when first powering up to fly mine is like that on the Standard .

  4. msinger

    Approved Vendor

    Joined:
    Oct 30, 2014
    Messages:
    19,021
    Likes Received:
    5,599
    Location:
    US
    It's like that even after doing a cold IMU calibration?

  5. dirkclod

    dirkclod Moderator
    Staff Member

    Joined:
    May 9, 2014
    Messages:
    10,652
    Likes Received:
    5,705
    Location:
    Amory Mississippi
    Mine has always been like that msinger . I do as you say when I have done IMU calibration but every time I power up to fly I have to wait
    for the thing to warm up and say ready to fly . I just thought that was normal with the 3 .

  6. msinger

    Approved Vendor

    Joined:
    Oct 30, 2014
    Messages:
    19,021
    Likes Received:
    5,599
    Location:
    US
    Hmm. That's odd. That trick is supposed to make your Phantom think it's warmed up whenever it reaches/exceeds the temperature it was at when the IMU was calibrated.

  7. dirkclod

    dirkclod Moderator
    Staff Member

    Joined:
    May 9, 2014
    Messages:
    10,652
    Likes Received:
    5,705
    Location:
    Amory Mississippi
    I will try to do another IMU Cal and put that sucker outside overnite and see if that don't change that . I will be seeing I have like 11 Sat's and still have to wait about a minute . I keep it in a room around 68 degree's and thought that was cool enough .
    Still a noob with this thing :)
    Got it getting out there but way more to this one than my Visions !

  8. msinger

    Approved Vendor

    Joined:
    Oct 30, 2014
    Messages:
    19,021
    Likes Received:
    5,599
    Location:
    US
    Ship it to me and I will do it. It's 48 here right now :)

    dirkclod likes this.
  9. dirkclod

    dirkclod Moderator
    Staff Member

    Joined:
    May 9, 2014
    Messages:
    10,652
    Likes Received:
    5,705
    Location:
    Amory Mississippi
    Funny as I just checked and that's what it is here :eek: Suppose to get down to 43 . Will try again :)
    And you already got one ;)

  10. dirkclod

    dirkclod Moderator
    Staff Member

    Joined:
    May 9, 2014
    Messages:
    10,652
    Likes Received:
    5,705
    Location:
    Amory Mississippi
    Hope boxer's getting all this ...kind of stepped in I did :rolleyes:

  11. msinger

    Approved Vendor

    Joined:
    Oct 30, 2014
    Messages:
    19,021
    Likes Received:
    5,599
    Location:
    US
    Yep... or 2...


    dirkclod likes this.
  12. dirkclod

    dirkclod Moderator
    Staff Member

    Joined:
    May 9, 2014
    Messages:
    10,652
    Likes Received:
    5,705
    Location:
    Amory Mississippi
  13. LuvMyTJ

    LuvMyTJ ADMINISTRATOR
    Staff Member

    Joined:
    Feb 9, 2014
    Messages:
    6,811
    Likes Received:
    4,376
    Location:
    Live! From New York!
    Us: Nobody likes a show off!

    [​IMG]

    You: They see me rollin', they hating'

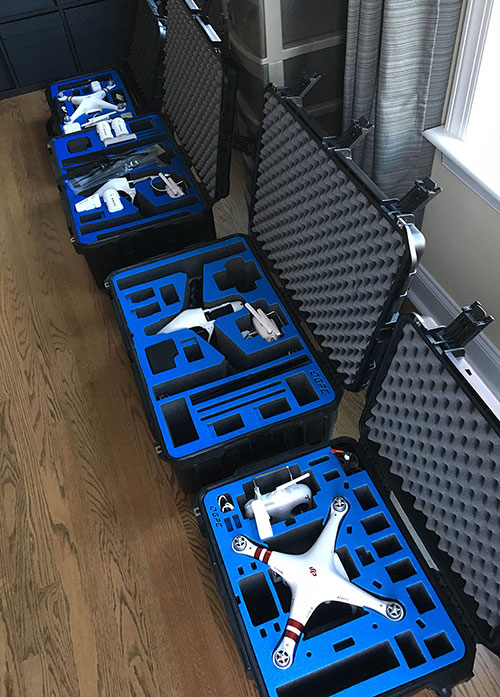

    Nice collection ya got there. If you need space to store any of them just let me know. ;)

    EddieG, dirkclod and msinger like this.
  14. boxer82003

    Joined:
    Nov 22, 2015
    Messages:
    30
    Likes Received:
    0
    Ok...

    So what if the room I did the calibration in was much warmer than the outside temp prior to flying, is this why ?
    Should I have done the IMU calibration outside?

  15. msinger

    Approved Vendor

    Joined:
    Oct 30, 2014
    Messages:
    19,021
    Likes Received:
    5,599
    Location:
    US
    Do it inside. Try to start the IMU calibration as quickly as possible once you start up your Phantom.

  16. LuvMyTJ

    LuvMyTJ ADMINISTRATOR
    Staff Member

    Joined:
    Feb 9, 2014
    Messages:
    6,811
    Likes Received:
    4,376
    Location:
    Live! From New York!
    The over temp warning is the board inside not the ambient temperature. Chilling the Phantom effectively chills the internal boards too.

  17. dirkclod

    dirkclod Moderator
    Staff Member

    Joined:
    May 9, 2014
    Messages:
    10,652
    Likes Received:
    5,705
    Location:
    Amory Mississippi
    When mine is powered up it says it's warming up then goes green .

  18. jasonkoehn

    Joined:
    Jul 24, 2015
    Messages:
    18
    Likes Received:
    10
    Put your phantom in the refrigerator and then do your IMU calibration while it's still cold. No joke, I know it sounds weird, but it works. The IMU waits until it gets to the same temperature it was at when calibrated. If you did it while warm it can take quite a while. Mine literally takes two seconds to "warm up" because it's always warmer than when I calibrated.

  19. LuvMyTJ

    LuvMyTJ ADMINISTRATOR
    Staff Member

    Joined:
    Feb 9, 2014
    Messages:
    6,811
    Likes Received:
    4,376
    Location:
    Live! From New York!
    The wife looked at me strange when she saw mine in the fridge one time. :D

    dirkclod likes this.
  20. dirkclod

    dirkclod Moderator
    Staff Member

    Joined:
    May 9, 2014
    Messages:
    10,652
    Likes Received:
    5,705
    Location:
    Amory Mississippi
    Bet she looks at ya that way a lot :)

    Adil J likes this.
