IMU calibration platform

Discussion in 'Pro/Adv Discussion' started by Royr1957, Apr 21, 2016.

  1. Royr1957

    Joined:
    Apr 3, 2016
    Messages:
    16
    Likes Received:
    7
    Location:
    Tacoma, WA
    I made a handy, little IMU calibration platform from an old 18" ceramic floor tile. I used JB Weld to glue nuts to the corners of the tile, I put rubber feet on the bolt heads and this works great to make a level platform for the calibration. Not my worst idea this week. https://goo.gl/photos/Vn9QQi1zX6qCTxXo7

    #1 Royr1957, Apr 21, 2016
    Last edited: Apr 21, 2016
  2. mrcrane2u

    Joined:
    Feb 3, 2016
    Messages:
    655
    Likes Received:
    183
    Location:
    sarasota
    Handy indeed

  3. alokbhargava

    Joined:
    Sep 28, 2015
    Messages:
    5,144
    Likes Received:
    1,662
    Location:
    San Francisco, CA
    Nice jig. I would prefer to use brass hardware. Not sure if it matters but still.

    Royr1957 likes this.
  4. Meta4

    Meta4 Moderator
    Staff Member

    Joined:
    Jan 8, 2014
    Messages:
    7,753
    Likes Received:
    3,465
    It doesn't matter.
    When you calibrate the IMU it's all about the gyros/accellerometers and barometer.
    It doesn't involve the compass at all.
    That's why you can do it indoors.

    Royr1957 likes this.
  5. alokbhargava

    Joined:
    Sep 28, 2015
    Messages:
    5,144
    Likes Received:
    1,662
    Location:
    San Francisco, CA
    Many times I had to move away from my fridge as I was getting compass error during IMU calibration. Noticed Compass values were reaching almost 1675

    I always believe theories are the basis for actions but reality is what one has to believe in.

  6. Meta4

    Meta4 Moderator
    Staff Member

    Joined:
    Jan 8, 2014
    Messages:
    7,753
    Likes Received:
    3,465
    The compass is still working when the Phantom is turned on and you are recalibrating the IMU.
    But the compass is not being calibrated in the IMU calibration process.
    The compass is simply telling you that it is detecting the magnetic field of the fridge and it is significantly different from what it has been calibrated for.
    Move the Phantom and the compass is back to normal.

    Royr1957 likes this.
  7. alokbhargava

    Joined:
    Sep 28, 2015
    Messages:
    5,144
    Likes Received:
    1,662
    Location:
    San Francisco, CA
    Agree.

  8. alokbhargava

    Joined:
    Sep 28, 2015
    Messages:
    5,144
    Likes Received:
    1,662
    Location:
    San Francisco, CA
    Is it not amazing that how much we learn through open discussions in this FORUM? And there is always something to learn if you listen to others views.

    Royr1957, Valkster and CANEKiTA like this.
  9. DefaultIT

    Joined:
    Jan 23, 2016
    Messages:
    188
    Likes Received:
    74
    Hey...this is clever...and you just gave me an idea!

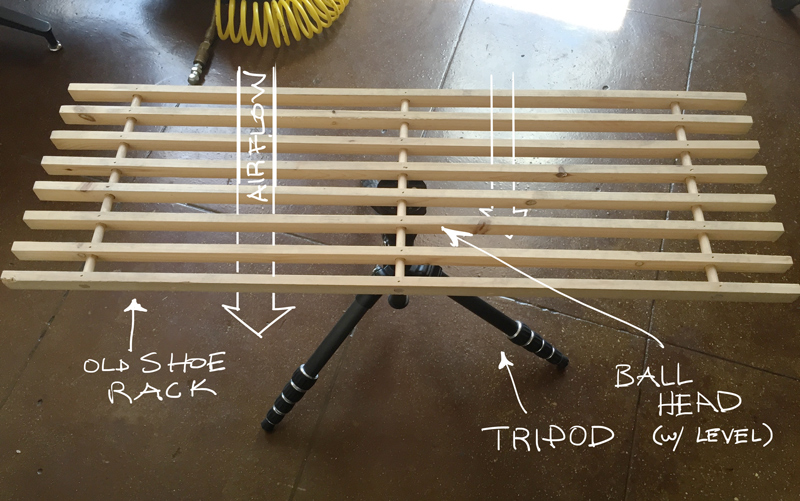

    Screwing a an arca plate to this old shoe rack will let me clamp it onto and old tripod with ball head (all lying around here), at which point I'll get:

    • adjustable tripod feet for any surface contour
    • easy take off/landing above grass/obstacles
    • built-in levels for landing platform (allow calibration anywhere, if needed)
    • panning base on there now would actually make compass calibration pretty fast, too (the platform rotates on loosening it)

    And here's the great part; using a mostly open rack like that might just vent enough downdraft to cut the ground effect turbulence down a bit. I'm clearly going to have to try this

    Royr1957 likes this.
  10. Royr1957

    Joined:
    Apr 3, 2016
    Messages:
    16
    Likes Received:
    7
    Location:
    Tacoma, WA
    Great idea! Let me know how it works..
