Hood + viewer

Discussion in 'Pro/Adv Discussion' started by TonG, Jul 1, 2015.

  1. TonG

    Joined:
    Aug 14, 2014
    Messages:
    294
    Likes Received:
    74
    Location:
    The Netherlands
    A while ago a build a hood for an Ipad mini. It did worked but only a little bit. In full sunshine I could barely see the screen.
    So I decided to make a makeshift viewer. I bought two +3 reading glasses (wall-mart type) and built them in a holder made of cardboard and lots of gaffer tape. And some pieces of velcro.
    In my backyard with full sunshine it worked very nicely.

    I will do some more practice tests and if it turns out well I will make a more decent model.




    tvckz likes this.
  2. BudWalker

    Joined:
    Jun 24, 2015
    Messages:
    775
    Likes Received:
    230
    Location:
    Santa Margarita, Ca
    Looks like it's enclosed on all 4 sides. How do you perform touch screen gestures?

  3. tvckz

    Joined:
    Jun 14, 2015
    Messages:
    312
    Likes Received:
    89
    Location:
    TVC
  4. TonG

    Joined:
    Aug 14, 2014
    Messages:
    294
    Likes Received:
    74
    Location:
    The Netherlands
    As you can see in the last picture I have the option to leave the front flap open in order to reach my tablet. However I'm making only pictures and I do not have to touch the screen.

    I used the viewer this afternoon during a sailing course and I must say it works fine. A very nice view and now you can see wat you are photographing and make a much better composition.

  5. jodyberry

    Joined:
    Dec 16, 2014
    Messages:
    20
    Likes Received:
    2
    Great idea!

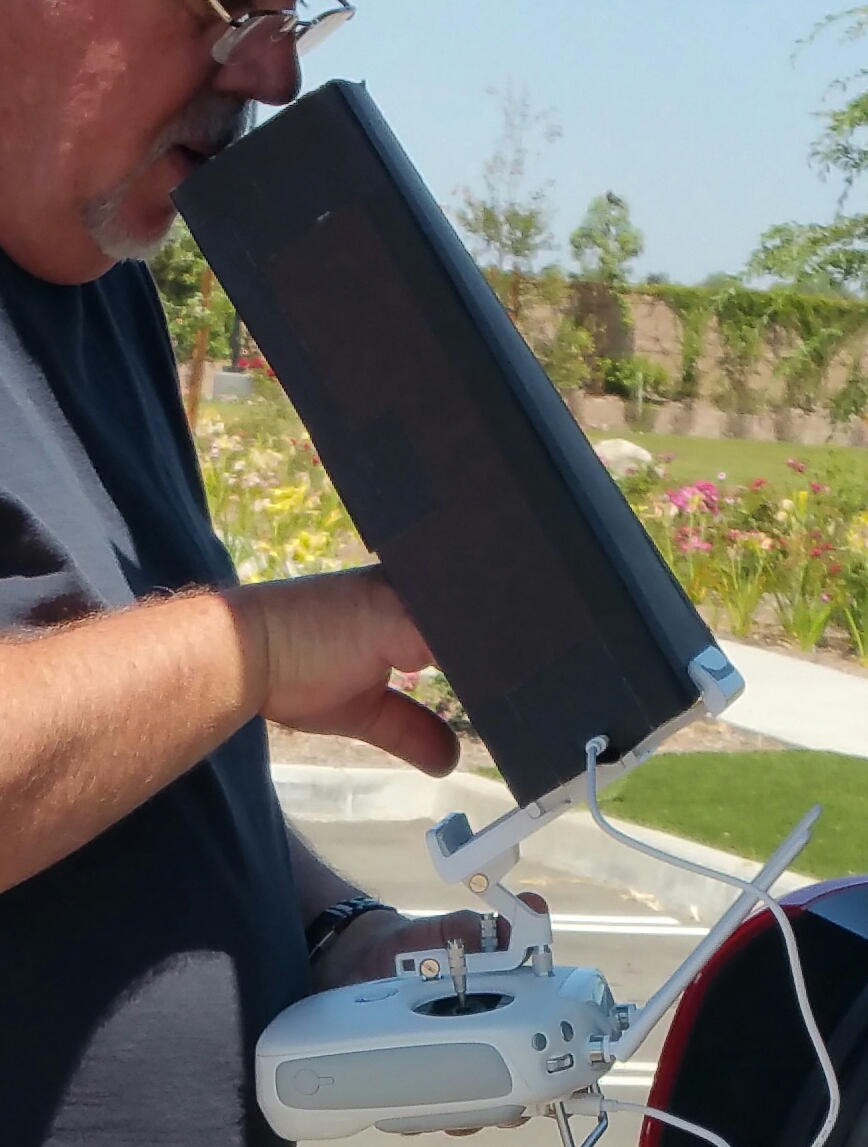

    We had made something similar (but w/o the glasses) with thick poster board and gaffers tape to fit our Note 2. It's works good but a little too far away from the tiny screen. The only open area is at the bottom in case we have to touch the screen (see hand in photo).



  6. TonG

    Joined:
    Aug 14, 2014
    Messages:
    294
    Likes Received:
    74
    Location:
    The Netherlands
    With the glasses I used you need a distance of around 20cm from the screen for to get a focused view. The projected screen size is about 12 inches across. guesswork off course.

    I'm looking for some quality fresnel-lenses to improve the construction of my viewer.
