First photos/video with P4-Running in the Desert

Discussion in 'Photos and Video' started by mrewright, Mar 20, 2016.

  1. mrewright

    Joined:
    Mar 11, 2016
    Messages:
    16
    Likes Received:
    2
    [​IMG]

    Hi all,

    Just had my P4 in the air for the first time, decided to take it along with me for some running in the desert. The P4 strikes me as fairly intuitive and easy to fly out of the box. I had some difficulty getting ActiveTrack to lock on unless the aircraft was within 20 ft of me, which was somewhat disappointing although the poor light may have been partially to blame. Also, I discovered some of the other limitations of ActiveTrack such as the inability to track a moving object from the side (only directly in front or behind the subject of interest) and the inability to orbit around the subject. I am hoping that these functions may be added in a subsequent software update as they would open up many more creative possibilities.

    Overall, a successful first flight and I have to say that this is a wonderful aerial photography/videography platform.



    Attached Files:

  2. Techcop50

    Joined:
    Sep 25, 2015
    Messages:
    361
    Likes Received:
    101
    Location:
    Aiken, SC, USA
    Good to hear, nice post and pics.

  3. rockydog

    Joined:
    May 25, 2015
    Messages:
    881
    Likes Received:
    248
    Location:
    London UK
    I'm no expert on this, but from what I've read I, suspect the problem you're having with Active Track maybe a combination of the poor light, and the fact that the clothing you're wearing tends to blend with the background colours. Also, you should be able to orbit a moving subject by moving the right stick to one side or the other once you're locked on and following.

    Nice pic. :)

  4. alokbhargava

    Joined:
    Sep 28, 2015
    Messages:
    5,119
    Likes Received:
    1,650
    Location:
    San Francisco, CA
    Your main problem appears to be lack of ambient light for Active Tracking.

  5. msinger

    Approved Vendor

    Joined:
    Oct 30, 2014
    Messages:
    18,906
    Likes Received:
    5,567
    Location:
    US

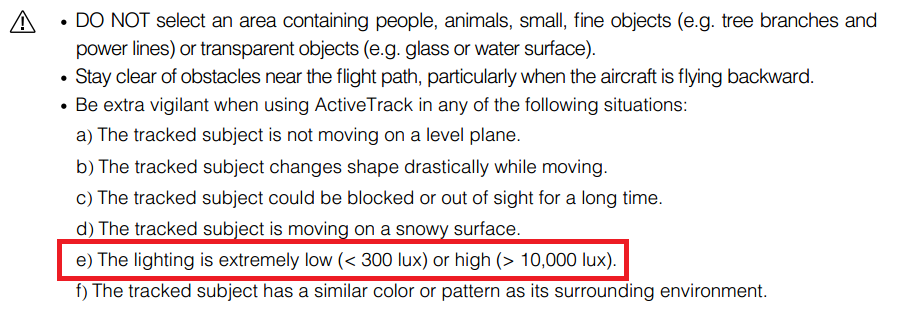

    Agreed. Here's what the Phantom 4 manual says about the lighting when using ActiveTrack:

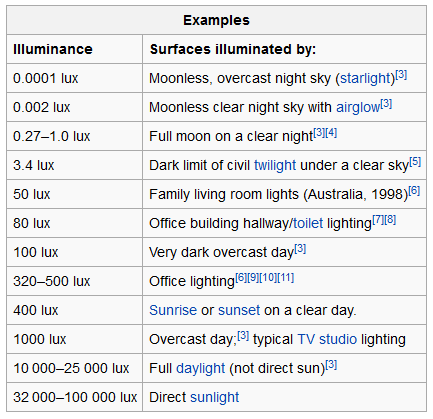

    Per Wikipedia, 400 lux is sunrise/sunset on a clear day. It appears the sun had already set in the above video, so it was most likely < 300 lux at that time.


  6. mrewright

    Joined:
    Mar 11, 2016
    Messages:
    16
    Likes Received:
    2
    Good point, thanks for attaching that graph. I suspect that the dim lighting was a large part of the issue. Although I tried using ActiveTrack again today and as soon as I walked through the shade of a palm tree ActiveTrack lost me again. It's a nice idea, but it's certainly got its limitations.

  7. msinger

    Approved Vendor

    Joined:
    Oct 30, 2014
    Messages:
    18,906
    Likes Received:
    5,567
    Location:
    US
    Yep, shadows will confuse it too.
