DJI Phantom 2 add in FPV (no soldering required)

Discussion in 'FPV (First Person View)' started by alibaba, Oct 7, 2014.

  1. alibaba

    Joined:
    Oct 6, 2014
    Messages:
    9
    Likes Received:
    0
    I want to add FPV on my Phantom 2 and don't want to do any soldering. I did some research and and came up with the following parts list I need to buy to get a descent FPV started. Can anyone please confirm the items listed and any recommendation or tips or if I even have the right items for my mod? Thanks

    DJI AVL58
    DJI iOSD Mini
    DJI FPV hub
    Black Pearl Diversity RX 7

    Existing hardware:
    Phantom 2
    Zenmuse H3-3D
    GoPro Hero 3 Black Ed.

  2. QYV

    QYV

    Joined:
    Apr 1, 2014
    Messages:
    1,814
    Likes Received:
    7
    Location:
    NYC
    this actually belongs in the FPV forum, you'll get more specialized response. a mod will probably move it for you soon.


    What you described is one setup, but probably not the best or cheapest... most folks around here agree that the AVL58 is not a great transmitter, and you can accomplish the same thing as the DJI hub with a $10 cable.

    I humbly suggest you check out my stickythread in the FPV forum here: viewtopic.php?f=34&t=26413
    there are 2 directions you can go, with the ImmersionRC transmitter or a Boscam. just get the appropriate cable, and then decide on a receiver.
    There are also some further items there you haven't thought of yet, such as antennas, a monitor mount, etc.

    anyway read through the thread linked above and if you have any questions ask them here in this thread, I'll see your post. We're trying to keep the sticky thread limited to posts about price updates not specific people's builds
    cheers!

  3. OI Photography

    Joined:
    Sep 23, 2013
    Messages:
    5,542
    Likes Received:
    17
    Location:
    Clarksville, TN
    Or at least soon-ish :D

  4. smallman28

    Joined:
    Sep 22, 2014
    Messages:
    163
    Likes Received:
    1

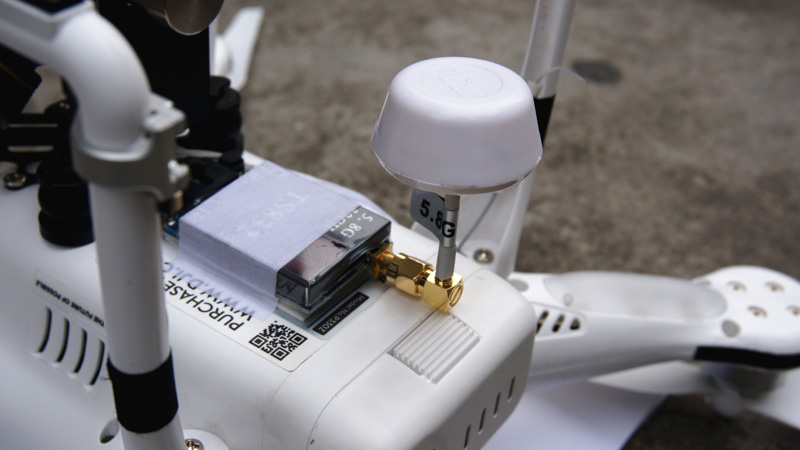

    I did mine this way.

    [​IMG]

    iOSD mini to FPV hub via short 4 pin lead.
    Then this cable

    https://www.rcgeeks.co.uk/equipment/fir ... cable.html

    From the FPV hub to the transmitter.
    Provides video and power for the transmitter which is a Immersion 25mw
    Make sure you switch the FPV hub to OSD or you wont get the OSD from the mini overlaid onto the video.

  5. alibaba

    Joined:
    Oct 6, 2014
    Messages:
    9
    Likes Received:
    0
    Did yo have to do any soldering? Sorry to ask this basic question but how does the GoPro Camera get connected to the TX ?
    I meant do I need to buy a special cable to connect the GoPro to the OSD for the video to be transmitted?

  6. smallman28

    Joined:
    Sep 22, 2014
    Messages:
    163
    Likes Received:
    1
    The video from the Gopro gets to the TX through the FPV board.
    Likewise the power used to move the gimbal also goes through the FPV board to be able to power the TX.
    As mine stands no soldering is needed,that's the good part.
    The FPV hub comes with the wires you need to set it up as mine is pictured with the exception of this lead.

    https://www.rcgeeks.co.uk/equipment/fir ... cable.html

  7. alibaba

    Joined:
    Oct 6, 2014
    Messages:
    9
    Likes Received:
    0
    Thanks and why do I need this cable for? I mean I don't mind buying it I just need to know what I will use it for with what Ia m already planning on buying:
    DJI AVL58
    DJI iOSD Mini
    DJI FPV hub
    Black Pearl Diversity RX 7

    Thanks and please be patient with me.

  8. OI Photography

    Joined:
    Sep 23, 2013
    Messages:
    5,542
    Likes Received:
    17
    Location:
    Clarksville, TN
    You would only need an alternative cable like that if you end up using a transmitter other than the AVL58. If you stick with that transmitter then the fpv hub is all you need.

  9. smallman28

    Joined:
    Sep 22, 2014
    Messages:
    163
    Likes Received:
    1
    I don't think YOU do:)
    I am not 100% certain but I believe the cable you get with the AVL58 does the same thing as the one I linked to.
    If you look at the crude drawing done here by OI Photography it shows a similar set up to what you will have

    viewtopic.php?f=21&t=26683

    You wont have the part labelled GCU but where that is plugged into the FPV hub your existing zenmuse cable will plug in instead.

  10. alibaba

    Joined:
    Oct 6, 2014
    Messages:
    9
    Likes Received:
    0
    You guys are awesome! Thanks.

  11. Damon

    Joined:
    Jun 25, 2014
    Messages:
    674
    Likes Received:
    5
    Location:
    Eastern Wa.
  12. alibaba

    Joined:
    Oct 6, 2014
    Messages:
    9
    Likes Received:
    0
    One other question, so as long as I buy the DJI AVL58 with one antenna, I can use the antenna that is built-in to the Black Pearl Diversity RX 7 correct? I asked because I see that the DJI AVL58 are for sale with two antenna (TX\RX) and I don't understand why if I only need one for the TX because the RX uses its own built in antenna. If I can buy the AVL58 without the antenna is there a recommended antenna other than the white mushroom looking antenna?

  13. Damon

    Joined:
    Jun 25, 2014
    Messages:
    674
    Likes Received:
    5
    Location:
    Eastern Wa.
    Using stock antennas will eventually frustrate you because range will be minimal. Trust me, bought after market spironet mushrooms and patch, then finally going to antennas in the above listed link. Learn from my mistakes ;)

  14. alibaba

    Joined:
    Oct 6, 2014
    Messages:
    9
    Likes Received:
    0
    Thanks for all the recommendations and valuable advices fellas. All the parts I need to setup my FPV have been ordered. I should have everything by end of next week.

    DJI AVL58 - CenuryHeli.com
    DJI iOSD Mini - CenuryHeli.com
    DJI FPV hub - CenuryHeli.com
    Black Pearl Diversity RX 7 -amazon.com
    Antennas - fpvlr.com/shop/
    Monitor Bracket - raveaerialvideo.com

    Existing hardware:
    Phantom 2
    Zenmuse H3-3D
    GoPro Hero 3 Black Ed.

  15. samteeeee

    Joined:
    Sep 18, 2014
    Messages:
    34
    Likes Received:
    2
    Hey, can you post pics of how you connected it all together once it arrives? :)

  16. ExtraKim

    Joined:
    Aug 23, 2014
    Messages:
    134
    Likes Received:
    1
    Location:
    Kalmar, Sweden
    I have a Phantom 2 with Zenmuse H3-3D and a GoPro Hero 3 Black Ed.

    I bought:
    Flysight Black Pearl Diversity 7" RX
    Flysight TX5804 5.8Ghz 400mW
    The nice thing is that the TX comes with a lot of different cables and it´s just plug and play.
    I´m planing on adding a IOSD Mini and all I need to do is to change the cable and it´s plug and play again :)

    There´s a lot of videos on Youtube describing how to mount it on the Phantom.
