Cheap China Panels (Liehuo) vs. any Antenna!

Discussion in 'Pro/Adv Discussion' started by Procharged97, Jun 22, 2016.

  1. Procharged97

    Joined:
    Mar 14, 2016
    Messages:
    993
    Likes Received:
    358
    Location:
    Canterbury, CT
    Ok, So to start this off this is for all Phantom 3 platforms (since I have a standard) but I know most of you that will use these or others have the adv/pro. I have one rule though...NO BAD MOUTHING COMPANIES OR ANTENNA BRAND/MAKERS ...please. As many of you know there has been talk that these cheap china panels are the same as the Terminator...I argue that they do not perform the same. So anyone who has these cheap panels and wants to put results up please do so we can all see the comparison. Doesn't matter what you test it against, just let us know what you used please. When you post please include a screen shot of the flight for the CCP (cheap china panels) and the other antennas. It would be better I think if we used Healthy Drones and took a pic of you setup with your bird on the trip back before you land for actual proof that is what you used since HD will show the pic on the bottom of whatever pic you took that flight. PLEASE INCLUDE ALL YOUR MODS, BOOSTERS OR NONE, BIRD SIDE ANTENNAS. If there is something you guys want to add let me know!

    I will start off with screen shots I took and will include my HD pic when I get home.My test was DBS mods small ITElite panel vs. CCP w/5.8 helical. No boosters with these tests for now

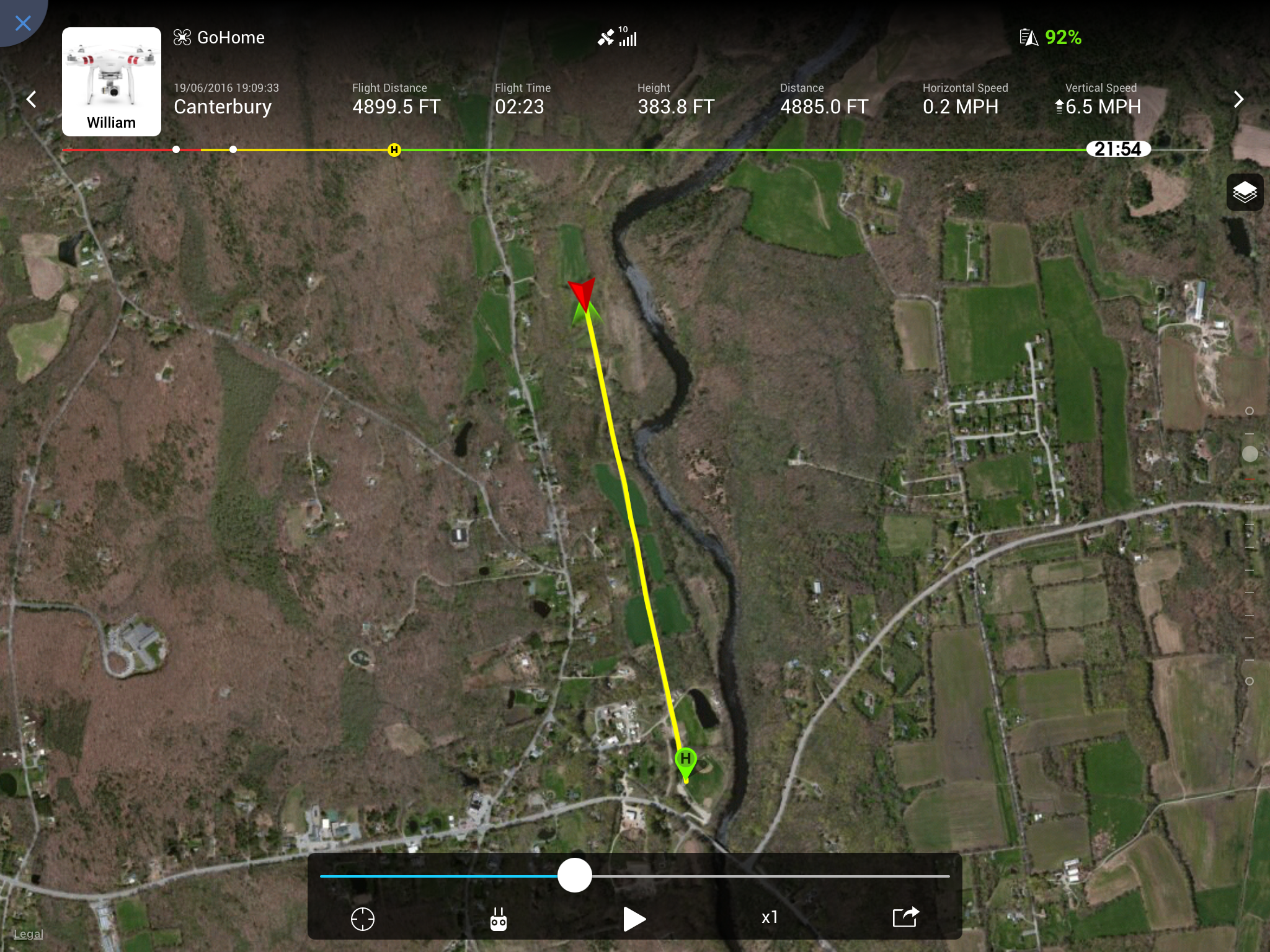

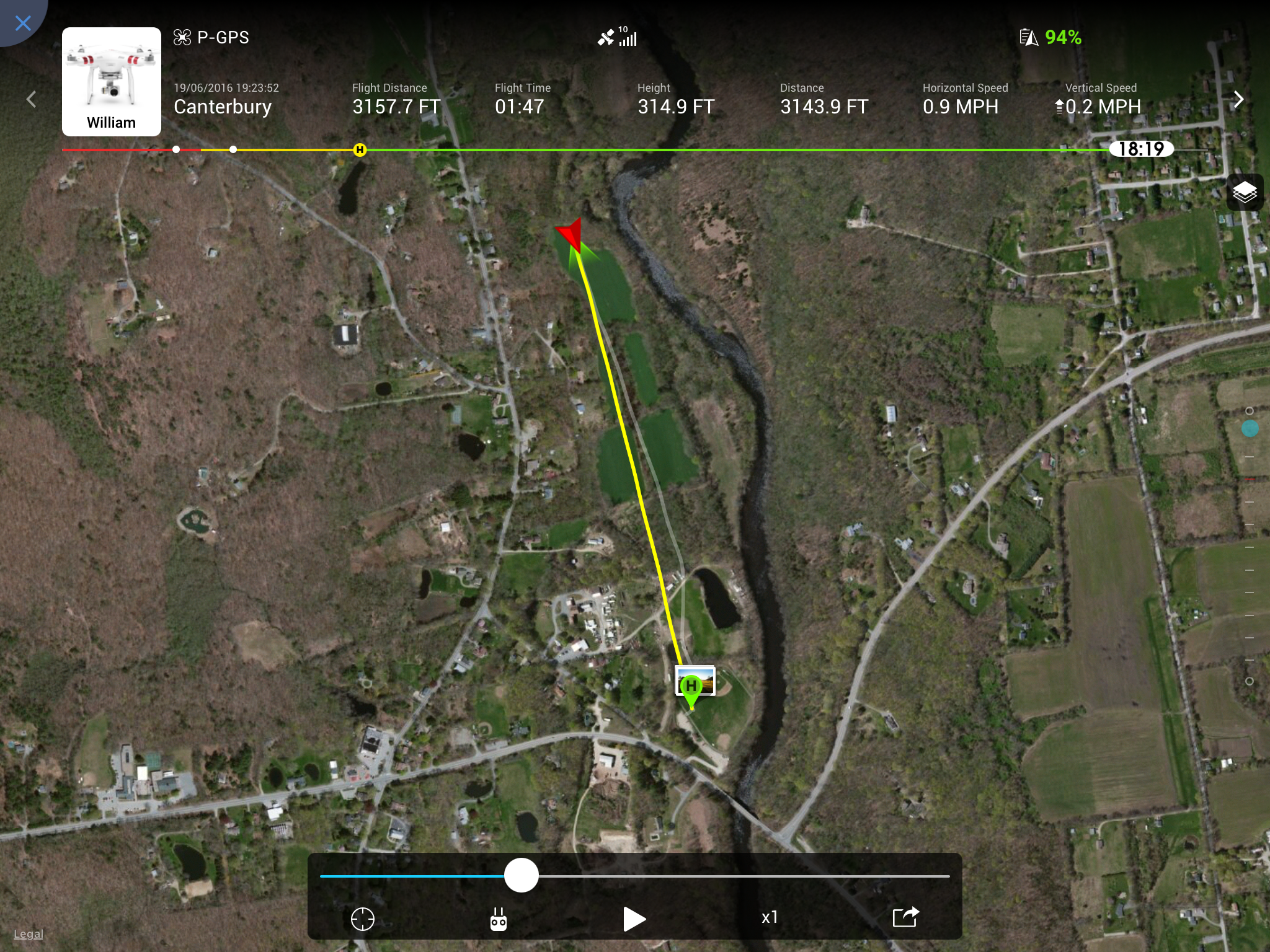

    First flight was with DBS and achieved 4899.5 feet before RTH kicked in, Second flight, same path within minutes from each other was with CCP+5.8 helical and it got me 3157.7 feet IMG_0106.PNG IMG_0111.PNG

    Tommymonkey likes this.
  2. dirtybum

    Joined:
    Apr 14, 2015
    Messages:
    3,314
    Likes Received:
    1,790
    Very interesting the DBS is like eight or nine dB and the CCP's are 14 dB?

  3. Procharged97

    Joined:
    Mar 14, 2016
    Messages:
    993
    Likes Received:
    358
    Location:
    Canterbury, CT
    Yes the DBS small panel is 2x9dbi and the CCP are 14dbi each.. had them set at same angle and had to adjust flight height to mantain signal on the 2.4 side with the CCP

    #3 Procharged97, Jun 22, 2016
    Last edited: Jun 22, 2016
  4. maxwell smart

    Joined:
    Feb 24, 2015
    Messages:
    851
    Likes Received:
    315
    Location:
    Texas
    Can you tell me in layman's terms how to take screen shot of the flight. You might want to imagine you are talking to someone educated in the judicial system. I have a android device.
    Well don't even imagine. Thanks.

  5. maxwell smart

    Joined:
    Feb 24, 2015
    Messages:
    851
    Likes Received:
    315
    Location:
    Texas
    Larger panels may pick up more interference. What we call noise. Might try flying in a different place.

  6. Doink

    Joined:
    May 1, 2016
    Messages:
    279
    Likes Received:
    79
    Location:
    Derbyshire, UK
    Google it for your particular device but from memory android devices are to press and hold the on/off button and home button simultaneously till you hear a shutter sound

    Procharged97 likes this.
  7. Procharged97

    Joined:
    Mar 14, 2016
    Messages:
    993
    Likes Received:
    358
    Location:
    Canterbury, CT
    That is my best spot I have around me...everywhere else is worse....only a few houses in that path that no one lives at and no power lines or anything like that overthere.

  8. maxwell smart

    Joined:
    Feb 24, 2015
    Messages:
    851
    Likes Received:
    315
    Location:
    Texas
    Been working on my new air conditioned mobile ground station.
    [​IMG]

    Numone, RawDawg85, jeganx and 6 others like this.
  9. Procharged97

    Joined:
    Mar 14, 2016
    Messages:
    993
    Likes Received:
    358
    Location:
    Canterbury, CT
    Thats sweet Max!! What are you using for the pole? I have a few heavy duty boat hooks i was thinking of using for a setup like yours..there cool because you can adjust them up to 20' or leave them down to 5' and are very light! If your close to my location I'll give you one to experiment with!

  10. Procharged97

    Joined:
    Mar 14, 2016
    Messages:
    993
    Likes Received:
    358
    Location:
    Canterbury, CT
    What have you got for distance with the china panels so far Max?

  11. maxwell smart

    Joined:
    Feb 24, 2015
    Messages:
    851
    Likes Received:
    315
    Location:
    Texas
    There is a electrical company next store to me , and I got a scrap piece of pvc conduit.
    I am not close. Did you boost your CCP ??
    I ran mine boosted. But I had to drive out to the farm land to get good range. Here around my house I cant get but 5or6000ft.

    ?
    I got over 3 miles with my old cheap panels.
    These are new and cost twice as much. I haven't tried them out yet to windy. They are 14 dbi, but are a lot bigger then my Chines set. I put the Max range on top. So this is what I am planning, Max rang for video at 24 dbi, the other two panels for transmitter at 24 dbi. All boosted. I am experimenting on this so there will be changes,.

  12. maxwell smart

    Joined:
    Feb 24, 2015
    Messages:
    851
    Likes Received:
    315
    Location:
    Texas
    Have you found a good source for low loss cables that are 10 or 15ft long??

  13. Procharged97

    Joined:
    Mar 14, 2016
    Messages:
    993
    Likes Received:
    358
    Location:
    Canterbury, CT
    There is a thread on here called flying grom inside the house or car..i know the op said he uses low loss lmr400 i think it was from L-com i believe..he runs 50' to the inside of his house with amps

    ANewWorldOrder likes this.
  14. Procharged97

    Joined:
    Mar 14, 2016
    Messages:
    993
    Likes Received:
    358
    Location:
    Canterbury, CT
    So on your liehuo 14dbi panels you got 5-6k around your congested area?? And was that boosted?

  15. Procharged97

    Joined:
    Mar 14, 2016
    Messages:
    993
    Likes Received:
    358
    Location:
    Canterbury, CT
    I didnt try them boosted and cant now since i just stripped them apart to redo them..only one small piece of 7mm foam in as a spacer..im going to use thinner foam for spacers at all 4 corners and actually run a panel mount sma thru the back. Ill post as i go if anyone is interested


    Attached Files:

    #15 Procharged97, Jun 22, 2016
    Last edited: Jun 23, 2016
  16. Procharged97

    Joined:
    Mar 14, 2016
    Messages:
    993
    Likes Received:
    358
    Location:
    Canterbury, CT
  17. henick

    Joined:
    Jan 2, 2016
    Messages:
    302
    Likes Received:
    61
    Position your hand like a chop and swipe the edge of your hand across the screen. You will hear the screenshot sound

  18. dirtybum

    Joined:
    Apr 14, 2015
    Messages:
    3,314
    Likes Received:
    1,790
    I posted this on another thread but here's the inside of the term! ImageUploadedByPhantomPilots1466645204.481673.jpg ImageUploadedByPhantomPilots1466645826.837062.jpg ImageUploadedByPhantomPilots1466645851.388639.jpg ImageUploadedByPhantomPilots1466645870.907898.jpg ImageUploadedByPhantomPilots1466645893.058561.jpg

    Mark The Droner likes this.
  19. Digdat0

    Joined:
    Feb 20, 2016
    Messages:
    864
    Likes Received:
    375
    Location:
    Oregon, USA
    What distance do you get in that same route stock without any antennas??

  20. maxwell smart

    Joined:
    Feb 24, 2015
    Messages:
    851
    Likes Received:
    315
    Location:
    Texas
    I like the inside view.Pleas keep me posted on any work you do to the CCP.
