CAM Port Pinout

Discussion in 'Zenmuse H3-3D/H4-3D GoPro Gimbal' started by Edward Czajka, Jun 15, 2015.

  1. Edward Czajka

    Joined:
    Jun 14, 2015
    Messages:
    6
    Likes Received:
    1
    I know the CAM port on a Phantom 2 is 6 pins, but only 4 are used. Anybody know what the last 2 pins are for? I am hoping the audio is on those two pins, and I can route those to my transmitter.

    Ed

  2. Thatlhurt

    Joined:
    Jun 5, 2015
    Messages:
    6
    Likes Received:
    0
    Location:
    Virginia
    Not sure what cable you are referring to. Do you mean the 8 pin cable from the H3-3D?

  3. Edward Czajka

    Joined:
    Jun 14, 2015
    Messages:
    6
    Likes Received:
    1

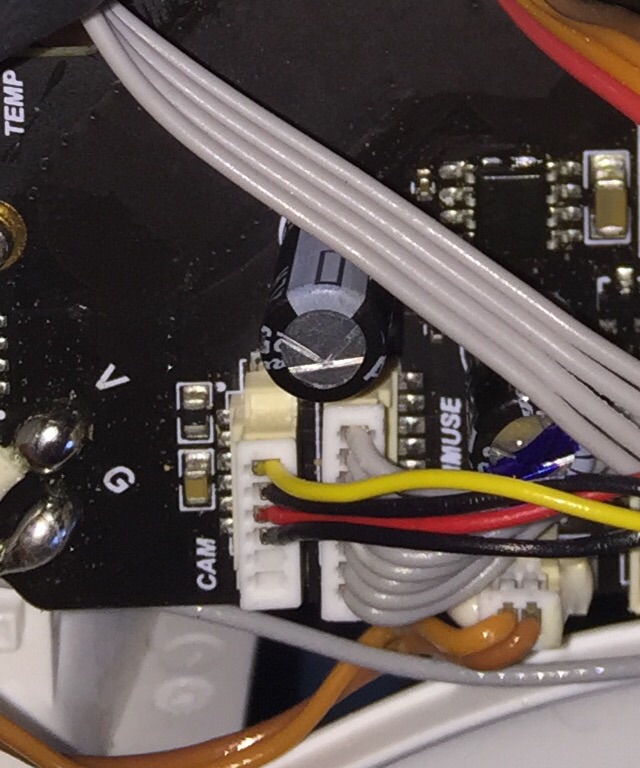

    This is the port I am referring to. 6 pins, but only 4 are used. If anybody has the Pinouts for the H3-3D, that would also be helpful.

  4. landmannnn

    Joined:
    Jan 18, 2015
    Messages:
    350
    Likes Received:
    62
    Location:
    Coventry and Limoges
    It seems likely that the other two ports are for audio + and -. Not sure if the gopro is audio connected though. Problem is, all you will hear will be the noise of the props, won't be much use to you.

  5. N017RW

    Joined:
    May 2, 2014
    Messages:
    6,236
    Likes Received:
    1,609
    Location:
    Palm Beach Co.- FL
