Calibration ERROR.

Discussion in 'Zenmuse H3-3D/H4-3D GoPro Gimbal' started by ivanzimerman, Jul 19, 2016.

  1. ivanzimerman

    Joined:
    Jul 19, 2016
    Messages:
    6
    Likes Received:
    0
    Hi everyone! I hava some problems with my Phantom 2 H4-3D. I've recently crashed the aircraft with a tree and now I can't calibrate the compass. Always it shows yellow/red light. The compass parameters are OK. The aircraft always shows GPS/Ready to fly green light. There are no errors or warnings when I connect it to the Software PT2. Beforehand, I had this problem when I tried to calibrate the compass with de Zenmuse plugged. so I had to unplugged the gimbal and then I could calibrate normaly. Now, after the crash, I can't nerver calibrate. I don't know why! Could you help me? Thanks!

  2. jason

    Joined:
    Oct 12, 2014
    Messages:
    4,105
    Likes Received:
    404
    Location:
    Commerce Twp,MI
    Have you done an advanced IMU calibration since the crash? That's where you should start first after any crash and do not bother with the check IMU status or basic cal do the advanced cal.

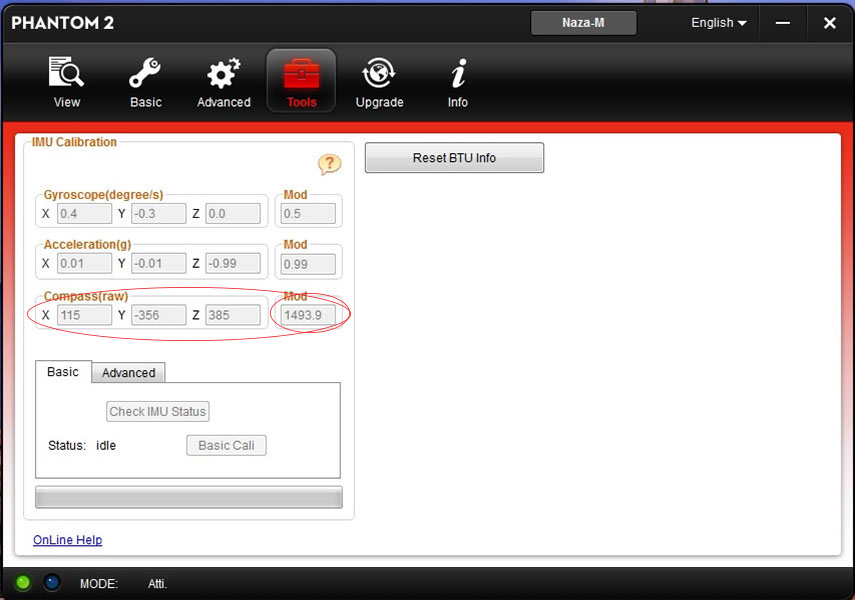

    The gimbal has nothing at all to do with compass calibration but if by chance the compass raw reading are off you have get the compass to calibrate. The IMU compass mod should be between 1300 - 1600 and if they more then 1600 the physical compass on the rear landing gear will need to be demagnetized. Here's what a screenshot of a IMU cal.
    Tools Tab (IMU Cal).jpg
    Take a screenshot of your IMU cal and post it.

    Here is a video on how to demagnetize the physical compass.

  3. ivanzimerman

    Joined:
    Jul 19, 2016
    Messages:
    6
    Likes Received:
    0
    Thanks for replying!! Yes, I had already done the IMU Adv Calibration and the compass calibration fails again! Today I tried to do it again and in the first three attempts it failed and then I could do it well. I don't know why in some attempts the process is OK and in others doesn't. I'm doing it in a huge park, so there are no magnetic objects or something like that. Here it is my IMU cal data...


    Attached Files:

  4. jason

    Joined:
    Oct 12, 2014
    Messages:
    4,105
    Likes Received:
    404
    Location:
    Commerce Twp,MI
    That IMU compass MOD reading at 1745 is high and will cause you to have problems calibrating the physical compass on the landing gear. Take another IMU screenshot and post it to confirm that last reading. Do it on a completely level surface. If you read my post carefully I mentioned "The IMU compass mod should be between 1300 - 1600 and if they more then 1600 the physical compass on the rear landing gear will need to be demagnetized." Followed by a video on how to demagnetize the compass. The only thing about the video is to demagnetize as he is doing in the video but instead of holding it as he does put the P2 on the table and run the magnet around the compass as he is doing.. Works much better that way.

  5. N017RW

    Joined:
    May 2, 2014
    Messages:
    6,244
    Likes Received:
    1,614
    Location:
    Palm Beach Co.- FL
    If you hover the mouse pointer on the "?" in the bubble in the upper right it will display the normal or acceptable levels for future reference.

  6. ivanzimerman

    Joined:
    Jul 19, 2016
    Messages:
    6
    Likes Received:
    0
    Y
    Yes I know, I had already checked that. Thanks!

  7. ivanzimerman

    Joined:
    Jul 19, 2016
    Messages:
    6
    Likes Received:
    0
    Here it is. Beforhand I was in a first floor. Maybe for that now the value is different... Now I'm in the low level of my house. 1500 is still a high level?


    Attached Files:

  8. jason

    Joined:
    Oct 12, 2014
    Messages:
    4,105
    Likes Received:
    404
    Location:
    Commerce Twp,MI
    I'd prefer to see it a bit lower but 1500 isn't bad. Have tried to calibrate the compass in your backyard?

  9. ivanzimerman

    Joined:
    Jul 19, 2016
    Messages:
    6
    Likes Received:
    0
    Yes! Not always the process is OK. Some attempts are good and some others doesn't (much of them). I don't know why!! :(

  10. jason

    Joined:
    Oct 12, 2014
    Messages:
    4,105
    Likes Received:
    404
    Location:
    Commerce Twp,MI
    The only time i calibrate the compass is after i been inside the shell to make a modification. Meaning Ii may go to several location during the day. Now if i were to drive a few hundred miles away i'd recalibrate just be safe but not every day or every field i fly from.

  11. ivanzimerman

    Joined:
    Jul 19, 2016
    Messages:
    6
    Likes Received:
    0
    Ok, thanks for your help! It's strange because I try to calibrate in a place and always the process fails but only one doesn't. Anyway... Thank you again!

  12. jason

    Joined:
    Oct 12, 2014
    Messages:
    4,105
    Likes Received:
    404
    Location:
    Commerce Twp,MI
    It really isn't necessary to calibrate the compass every time and I've been flying for two half years without any problems because I do not calibrate at every field.

  13. N017RW

    Joined:
    May 2, 2014
    Messages:
    6,244
    Likes Received:
    1,614
    Location:
    Palm Beach Co.- FL
    There's two 'camps'.

    Those who cal all the time and never know if they needed to.

    And those, like me, who have cal-ed very rarely (three times since May '14).

    Neither is likely to be convinced to switch camps.

    ivanzimerman likes this.
  14. jason

    Joined:
    Oct 12, 2014
    Messages:
    4,105
    Likes Received:
    404
    Location:
    Commerce Twp,MI
    When I first started in March '14 I cal every place I went but it didn't long to realize it was necessary and quit doing so. Really do not care if I change someone way of doing things or way of thinking.

    ivanzimerman likes this.
  15. jason

    Joined:
    Oct 12, 2014
    Messages:
    4,105
    Likes Received:
    404
    Location:
    Commerce Twp,MI
    If their happy doing that silly little dance so be it.

    ivanzimerman likes this.
