Advanced Broken Compass Connector

Discussion in 'Phantom 3 Help' started by dookie, Aug 1, 2015.

  1. dookie

    Joined:
    Aug 1, 2015
    Messages:
    3
    Likes Received:
    0
    So I broke the compass connecter while trying to open up my Phantom 3. Does anyone know if this is repairable? http://i.imgur.com/E3isSLQ.png You can see it's lifted in the picture.

  2. CityZen

    Joined:
    Oct 22, 2014
    Messages:
    940
    Likes Received:
    36
    Location:
    NYC
    That's an easy fix for someone with good soldering skills. Just need to push the connector back down
    and solder a bridge from the connector lead to the nearby test pad.

  3. dookie

    Joined:
    Aug 1, 2015
    Messages:
    3
    Likes Received:
    0
    Do you think I can just heat up the current solder and push it back down? You may not be able to tell from the pictures but all of the pins have been disconnected form the solder. That one just happen to lift from the main board.

  4. CityZen

    Joined:
    Oct 22, 2014
    Messages:
    940
    Likes Received:
    36
    Location:
    NYC
    So you're saying that for the 4 left pins, they've broken off from their "feet"?
    That makes it more tricky. You can of course try to push them back together and heat up the joints and add more solder to reconnect them.
    It may work, it may not. Best option would be to replace the connector. I believe it's a JST GH-series, available from Digikey or Mouser.

  5. dookie

    Joined:
    Aug 1, 2015
    Messages:
    3
    Likes Received:
    0
    Just ordered it. Thanks for your help! Now off to watch soldering tutorials lol.

  6. duplisak

    Joined:
    Sep 30, 2015
    Messages:
    2
    Likes Received:
    0
    Hello guys

    I have the same problem. I have broke the compass connector on the motherboard from Phantom 3. Now the question remains. Which connector to buy ( JST GH). I do know know which one.

    Official retailer told me i have to buy a brand new motherboard ( cheesy shoot to make money ). I believe it can be fixed with a new connector and a good soldering skills.

    Please do help to buy the right connector

  7. N017RW

    Joined:
    May 2, 2014
    Messages:
    6,236
    Likes Received:
    1,606
    Location:
    Palm Beach Co.- FL
    Don't let me take this thread off-course but I just had to say I love the international or cultural idioms.

    i.e "cheesy shoot to make money"

  8. duplisak

    Joined:
    Sep 30, 2015
    Messages:
    2
    Likes Received:
    0
    Not right DJI charging so much for spare parts

  9. Steven Price

    Joined:
    Jun 17, 2016
    Messages:
    8
    Likes Received:
    0
    Would you mind posting a link to what you ordered? I have the same problem on my phantom 3 pro.

  10. hunch

    Joined:
    Oct 10, 2014
    Messages:
    1,500
    Likes Received:
    225
    Steven, if you have a good thin tip soldering iron, this is pretty easy to solder down unless the whole connection got torn out with the
    connector, then you'll have to wire it. those copper dots are also solder joint points and you can take that route.

    Steven Price likes this.
  11. Steven Price

    Joined:
    Jun 17, 2016
    Messages:
    8
    Likes Received:
    0
    Hunch:

    Thanks for the quick reply. I'm attaching two photographs to this post; one of the connector (which was once attached) and the other of the mainboard with the bent/broken pins.

    I've never soldered anything other than speaker connectors, so in your opinion, what would be my best route?

    Thanks so much for your time. IMG_7910.JPG IMG_7911.JPG

  12. hunch

    Joined:
    Oct 10, 2014
    Messages:
    1,500
    Likes Received:
    225
    Looks like all your 5 connections are in good shape. Unsolder the remaining ones off and clean the connectors. Then tin them slightly and solder a new connector to the board.
    You will need a really thin tip on the solder at about 450 degrees.

    Steven Price likes this.
  13. Steven Price

    Joined:
    Jun 17, 2016
    Messages:
    8
    Likes Received:
    0

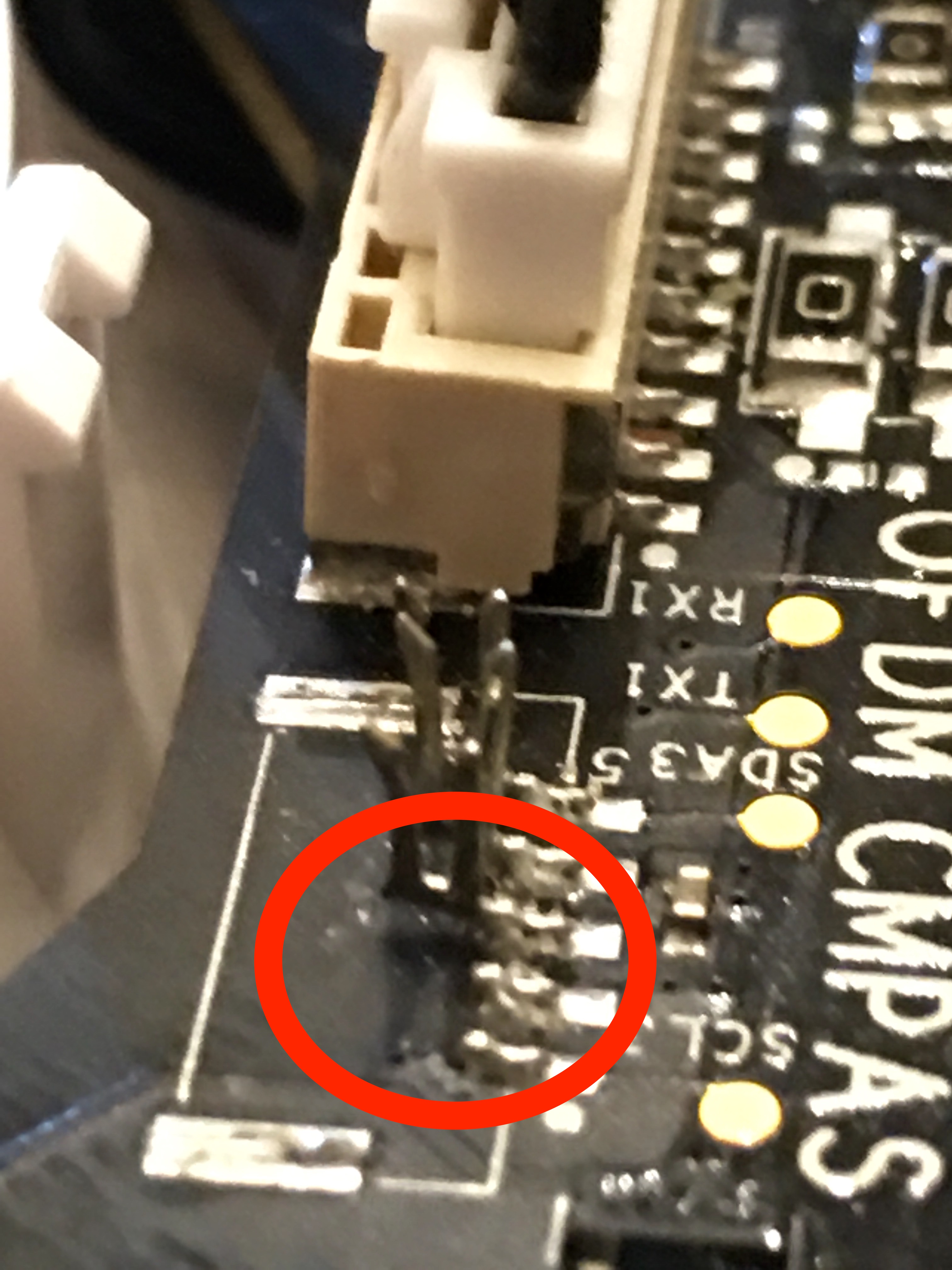

    Hunch: Thanks for the quick reply. When you say "connections" do you mean the pins? 2 of them are broken off. It's hard to tell in the photograph. I circled the area and re-uploaded the photograph. IMG_7910.JPG

  14. Steven Price

    Joined:
    Jun 17, 2016
    Messages:
    8
    Likes Received:
    0
  15. royster

    Joined:
    Jun 4, 2016
    Messages:
    224
    Likes Received:
    68
    Location:
    Mt.Albert, Ontario, Canada
    Not my phantom, but on a mother board that runs my aftermarket Electronic fuel inj. unit on my old Ford, 3 of the 6 pins had broken off. For these tiny connections I went to an electronics store for help. They had one of their techs reinstall the tiny pins & tin/solder everything as new, it was worth every cent of the $40.00. they charged me.

    Steven Price likes this.
  16. Steven Price

    Joined:
    Jun 17, 2016
    Messages:
    8
    Likes Received:
    0
    Thanks Royster!

    Was it a "big-box" chain the electronic store or a local shop?

  17. hunch

    Joined:
    Oct 10, 2014
    Messages:
    1,500
    Likes Received:
    225
    yes,
    it looks like you'll be able to solder back on them

  18. hunch

    Joined:
    Oct 10, 2014
    Messages:
    1,500
    Likes Received:
    225
    be VERY careful with the capacitor to the right of the connectors (little brown square) over the weekend i was fixing
    the same thing for the customer and i pressed the tip of the solder little to close to it and i burned it right off.
    ended up replacing the whole main board... UGH.. it was my first project on a saturday morning at 5.30 .
    i was so mad, because i tested it and it worked and i just wanted to make sure it is 100% perfect and that's when i
    burned the cap off. well, things only went up the hill from that moment on :D

  19. Steven Price

    Joined:
    Jun 17, 2016
    Messages:
    8
    Likes Received:
    0
    Do you do this professionally? If so, do you have a website or e-mail address where we could talk?

    I removed the remaining pins as two had already broken off and I had no idea where they went. Were to I to purchase an entirely new JST-GH connector would the pins be included with it?

  20. hunch

    Joined:
    Oct 10, 2014
    Messages:
    1,500
    Likes Received:
    225
    yes i do.
    uavrepairshop.com
    or if you're on FB find group called UAV Repair Shop and join it and i'll add you to it and we can talk there
