Be careful with Waypoints

Discussion in 'Pro/Adv Discussion' started by damoncooper, Sep 16, 2015.

  1. damoncooper

    Joined:
    Mar 20, 2014
    Messages:
    747
    Likes Received:
    51
    Location:
    Boston, MA
    Be careful with Waypoints. Flight path between two waypoints is a straight line, even if you flew the original flight around or over obstacles (ie a hill).

    Illustrated:


  2. granvillelee

    Joined:
    Sep 15, 2015
    Messages:
    12
    Likes Received:
    4
    Thanks for this info....hopefully u didn't find this out the hard way.

  3. envisionabove

    Joined:
    Apr 13, 2015
    Messages:
    1,036
    Likes Received:
    387
    Location:
    Tim in San Diego
    Great point! Nice diagram to explain thank you.
    I have yet to fly a way point mission.
    So....

    WP1 ( height 13M ) going to WP2 13M...reaching WP2 ( Height set for 30M ) bird reaches WP2 stops and goes to 30M, add a WP3 Bird goes from 30M reaches WP3 ( Height set for 13M )stops then Descends to 13M.

    Sounds Square.... No Graduated climbs or descents to each WP.

    #3 envisionabove, Sep 16, 2015
    Last edited: Sep 16, 2015
  4. Cthulhus

    Joined:
    Jul 30, 2015
    Messages:
    92
    Likes Received:
    29
    Location:
    France
    Thanks for the image !

    damoncooper likes this.
  5. III% Streve

    Joined:
    Aug 1, 2015
    Messages:
    1,756
    Likes Received:
    515
    Altitude variations are attained as it travels from point to point. The best option, as illustrated, would include 4 or more way points to make a smooth transition over the hill and back to the base altitude.

  6. damoncooper

    Joined:
    Mar 20, 2014
    Messages:
    747
    Likes Received:
    51
    Location:
    Boston, MA
    No I was answering a friend who hit the ground and thought it might be useful to illustrate and share.

  7. envisionabove

    Joined:
    Apr 13, 2015
    Messages:
    1,036
    Likes Received:
    387
    Location:
    Tim in San Diego
    Stair Stepping " Altitude variations are attained as it travels from point to point." That confused me Streve?
    Did you mean ( Altitude variations are attained as it reaches point to point.? )

  8. III% Streve

    Joined:
    Aug 1, 2015
    Messages:
    1,756
    Likes Received:
    515
    Point A is 10 feet
    Point B is 20 feet
    Half way to point be the altitude would be 15 ft... the variations in altitude for each point happen AS its flying to the next point, just like any plane would.

  9. envisionabove

    Joined:
    Apr 13, 2015
    Messages:
    1,036
    Likes Received:
    387
    Location:
    Tim in San Diego
    Is that going against what the Op said?
    [​IMG]
    Wait a min I see what your saying! Streve, if he had WP2 at the top of the arch then he needed a new WP3 at the bottom of the arch.
    Is there a formula that should be followed as to an ascent and descent as far as spacing? or distance?

  10. bobomet

    Joined:
    Jan 12, 2014
    Messages:
    385
    Likes Received:
    73
    Location:
    Virginia, USA
    Waypoint 1 should be straight up from Home Point to a good clearance altitude. Your last waypoint should be straight above the Home Point. I then flip it back into "P" mode and bring it down myself.
    I don't really find a lot of utility in Waypoints myself because I typically have a flight plan built around getting specific photo or video shots; so I spend my time in 1 or 2 locations on a "shoot".
    But if your plan is to inspect farms or power lines, then I could see Waypoints being a great utility.

  11. III% Streve

    Joined:
    Aug 1, 2015
    Messages:
    1,756
    Likes Received:
    515
    Not sure what you mean by "formula". In the original illustration I would set up 7 waypoints, if the hill was part of something I planned to record. one at the WP1, one at the start of the hills altitude change. One about half way up. Two more evenly spaced across the top. Another half way down, then another where the ground levels and the next transitioning away from the hill. If it were simply something in my way.. like a row of trees while inspecting a farm, I would simply pop up in altitude to clear them, and drop back to a working altitude after they were cleared. No need to make it smooth and pretty.

  12. bobomet

    Joined:
    Jan 12, 2014
    Messages:
    385
    Likes Received:
    73
    Location:
    Virginia, USA
    Have you tested this out yet III% Streve ....?
    It would be good to know if that works in a hilly area and/or one with trees.

  13. 30secs

    Joined:
    Jun 12, 2015
    Messages:
    889
    Likes Received:
    113
    In short -- Altitude changes require a waypoint as well, not just distance changes.

    III% Streve likes this.
  14. tcope

    Joined:
    Jan 29, 2015
    Messages:
    3,556
    Likes Received:
    1,400
    Location:
    Salt Lake City, UT
    I put together a video giving some tips. Might be worth watching.


    envisionabove likes this.
  15. Buckaye

    Joined:
    Aug 24, 2014
    Messages:
    1,557
    Likes Received:
    420
    Location:
    Orlando
    Yeah - though you can build your height into your distance waypoints.... I still HAAATE the way this is implemented... Ground Station was so much more user friendly :)

    envisionabove likes this.
  16. III% Streve

    Joined:
    Aug 1, 2015
    Messages:
    1,756
    Likes Received:
    515
    TERRIBLE illustrations. Sorry. But they get the point across! The top image is what I would do if I had to deal with altitude changes. It makes a smooth flight and stays relatively the same altitude AGL through the flight.

    The second is what I was talking about with trees in the way of a farm inspection. But a very important note.. The yellow section.. If you are planning to go forward 100 feet, and climb 100 feet you could run in to issues where this would NOT work out smoothly. The P3 only has a max ascent rate of like 11 m/s in waypoint mode I think. But the speed can be set much higher. Lets say you are traveling at max speed.. you will reach the waypoints GPS location far faster than you can reach the waypoints altitude... so you would again possibly his something.

    envisionabove likes this.
  17. JamesD

    Joined:
    Apr 26, 2014
    Messages:
    161
    Likes Received:
    73
    Location:
    Holden, Massachusetts

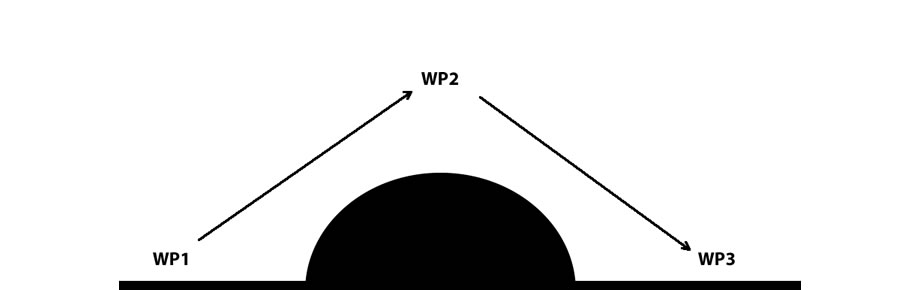

    So this is not advisable? Add at least another WP?

  18. III% Streve

    Joined:
    Aug 1, 2015
    Messages:
    1,756
    Likes Received:
    515
    Sure.. that would work... IF its not important to smoothly follow the contour of the hill. You also run in to potentially close proximity to trees or whatever between WP1 and WP2, or WP2 and WP3

    JamesD likes this.
