Battery Chargers

Discussion in 'Pro/Adv Discussion' started by stealthbomber, Oct 20, 2015.

  1. stealthbomber

    Joined:
    Oct 2, 2015
    Messages:
    224
    Likes Received:
    82
    Wondering if anyone has any experience with either of these two chargers?

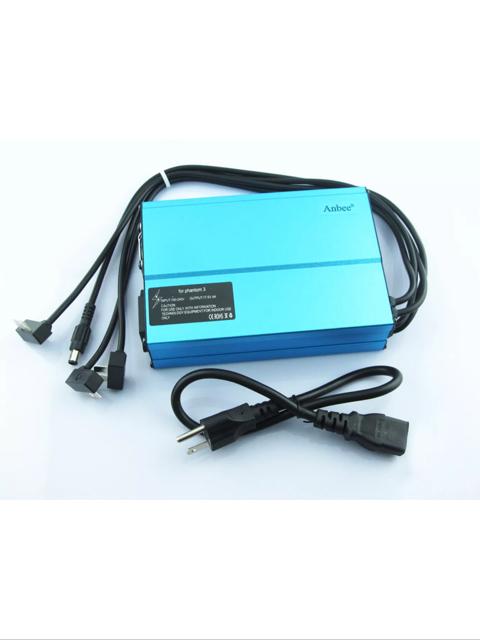

    This one is $90CDN
    ImageUploadedByPhantomPilots - DJI Phantom Forum1445372256.004795.jpg

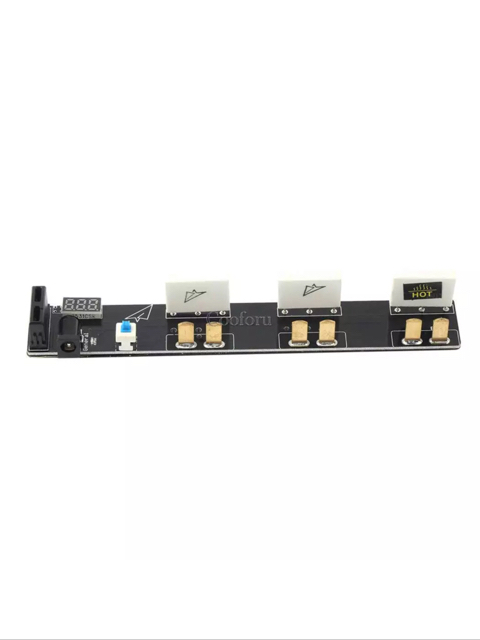

    This one is $10CDN
    ImageUploadedByPhantomPilots - DJI Phantom Forum1445372296.278945.jpg


    Will the $10 one charge as fast as the $90 one using the original charger? What are the downsides? I like the $80 saved upside!

  2. klawtrax

    Joined:
    Oct 19, 2015
    Messages:
    60
    Likes Received:
    8
    I have the $10 one. The blue button says Phantom 3. I think it charges at higher voltage when press. It is not a charger, you have to plug your original charger into this. What it's good for is charging multiple batteries. It charges them in sequence in order not to burn your charger out. So you can plug three batteries in and walk away. My guess is the big one above will charge two at the same time.

  3. robinb

    Joined:
    May 10, 2014
    Messages:
    2,907
    Likes Received:
    503
    Location:
    A place in the sun
    i have the first one, its really good.

    all batteries charges at same time

  4. tcope

    Joined:
    Jan 29, 2015
    Messages:
    3,527
    Likes Received:
    1,389
    Location:
    Salt Lake City, UT
    Lots of threads on these chargers. Blue one charges 3 batteries and controller at same time. The other uses your charger and charges one at a time.

  5. Cacc

    Joined:
    May 25, 2015
    Messages:
    121
    Likes Received:
    49
    Location:
    Toronto, Ontario, Canada
    Basically, if you have 3 batteries then it will take about 3 hours plus the remote control with the $10 unit and 1 hour with the $90 unit. It all depends on how much your time is worth over time and if you require to get all your batteries charged as soon as possible.

    #5 Cacc, Oct 20, 2015
    Last edited: Oct 22, 2015
  6. BigAl07

    BigAl07 Moderator
    Staff Member

    Joined:
    Jan 5, 2015
    Messages:
    2,362
    Likes Received:
    1,267
    Location:
    Western North Carolina
    I have the "Blue" one and absolutely love it. I have 4 batteries and I can almost fly nonstop for hours with this set up. If I get a couple more batteries I'll probably buy another one just like it so I can charge 6 at the same time.

    I use my charger almost every day and on the weekend it stays pretty much ON all day long lol.

  7. Waynet2

    Joined:
    Dec 7, 2013
    Messages:
    8
    Likes Received:
    0
    I also have the low cost version and it works as described. My main issue is lack of enclosure for the board- but I have plastic case I found that works fine for transport.

  8. RedHotPoker

    Joined:
    May 3, 2015
    Messages:
    3,972
    Likes Received:
    1,365
    Location:
    Edmonton Alberta
    With four intelligent flight batteries I went ahead & bought a second @dji 100w charger. It suits my flying style perfectly. Yes, it's great having the ability to charge my multiple batteries at the same time. Or the radio controller and a flight battery, simultaneously.

    RedHotPoker

  9. stealthbomber

    Joined:
    Oct 2, 2015
    Messages:
    224
    Likes Received:
    82
    Thanks guys. Now that I know the difference between the two I will spend the extra and get the "blue" one. Does it shut down each individual batteries charging when it reaches full, or does it keep charging all till they are all charged?

    BigAl07 likes this.
  10. Cacc

    Joined:
    May 25, 2015
    Messages:
    121
    Likes Received:
    49
    Location:
    Toronto, Ontario, Canada
    It acknowledges each battery separately. When a battery is full, it will stop charging on that battery but continue charging the rest. It acts almost like you have 3 separate chargers plus a remote control charger, but only takes up one plug at the wall.

    #10 Cacc, Oct 21, 2015
    Last edited: Oct 22, 2015
  11. Erroll

    Joined:
    May 15, 2015
    Messages:
    501
    Likes Received:
    212
    Location:
    South Africa
    I have the 10$ one as well as an extra 100w DJI charger. If I need batteries in a hurry I use the DJI chargers. If not, I hook up three to the 10$ one. It charges from the bottom up, in other word it starts charging the lowest battery first.
    As the voltage catches up to the next one it starts charging that one. This means it can be charging all three simultaneously, but as said up thread, it will take three times as long. This is a good thing, in my opinion, because slower charging is better that faster charging for the batteries.

  12. PilotHarry

    Joined:
    Sep 20, 2015
    Messages:
    283
    Likes Received:
    85

    I just bought the blue one, it's waiting at home in a box :)

  13. tcope

    Joined:
    Jan 29, 2015
    Messages:
    3,527
    Likes Received:
    1,389
    Location:
    Salt Lake City, UT
    It might be good to know that all Phantom chargers simply put out current. The batteries themselves control the charge.

    Reed L likes this.
  14. BigAl07

    BigAl07 Moderator
    Staff Member

    Joined:
    Jan 5, 2015
    Messages:
    2,362
    Likes Received:
    1,267
    Location:
    Western North Carolina
    What's key here is to realize the "Charging Function" is contained within the Smart Battery. The rest of the system is more or less just a power supply. In simple terms the "Blue Charger" is a beefed up version of the DJI system with 3 battery outputs and 1 Tx output. The intelligence is built into the battery and the controller. Also the "Blue Charger" has a built in fan so it self regulates heat as needed.

    Many other companies have been going this route for a few years now. Spectrum transmitters have had the "Charge Intelligence" built into them for a while. The wall outlet (called wall wart) is just a power supply and the charge circuitry is hidden inside the Tx.

  15. BigAl07

    BigAl07 Moderator
    Staff Member

    Joined:
    Jan 5, 2015
    Messages:
    2,362
    Likes Received:
    1,267
    Location:
    Western North Carolina

    I don't have the parallel charging board y'all have to do a side by side comparison. In speaking of the Blue Charger it doesn't charge the battery (individually) any faster than the DJI 100W but it's able to charge 3 at the same time. In essence we are charging the battery just like the factory charger is but doing 3 batteries. This way we're not putting any extra stress on the battery by "pushing" the charge cycle.

    It's as if we were using 3 DJI 100W chargers all at the same time to charge 3 batteries.

    I hope that clears things up some.

  16. tvckz

    Joined:
    Jun 14, 2015
    Messages:
    312
    Likes Received:
    89
    Location:
    TVC
    I just bought the second P3P and it came with charger. Now I have two 100w chargers.

  17. bmcgnh

    Joined:
    Aug 10, 2015
    Messages:
    70
    Likes Received:
    11
    Location:
    Orlando, FL
    My test--

    I purchased the "blue" charger (Anbee) on Amazon for $75.99. I have 3 DJI batteries. I drained each battery to 32% and I drained the remote to 70%. I placed B1, B2 and the remote on the Anbee and another battery on the original DJI 57W charger. Set up my GoPro, plugged in both chargers at the same time and let them run.

    Start time (on the bedroom clock) was 1:27
    Final results
    WIN- Anbee Battery 1 required 68 minutes (and the fan shut off)
    PLACE- DJI Battery required 70 minutes
    SHOW- Anbee Battery 2 required 82 minutes
    Also Ran- Remote required 90 minutes

    The "blue" charger took 82 minutes to fully charge two batteries from 32% and the original DJI 57W charger (P3A) took 70 minutes to charge one similarly depleted battery.

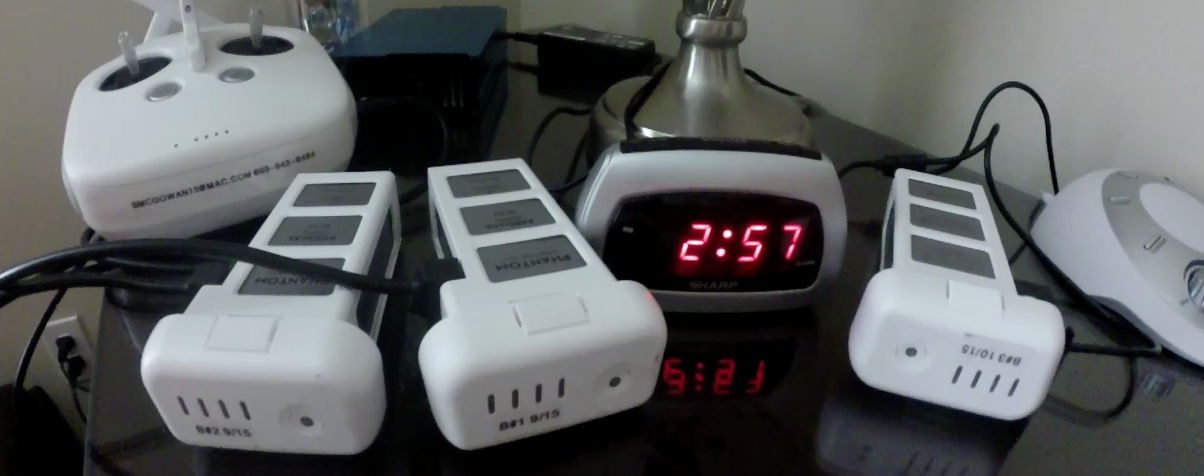

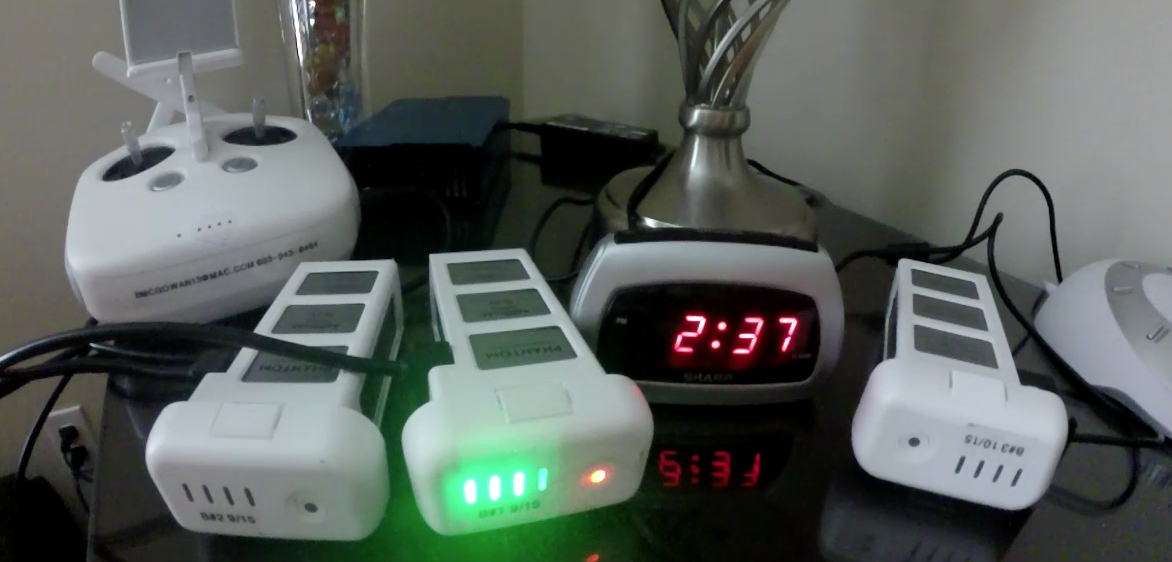

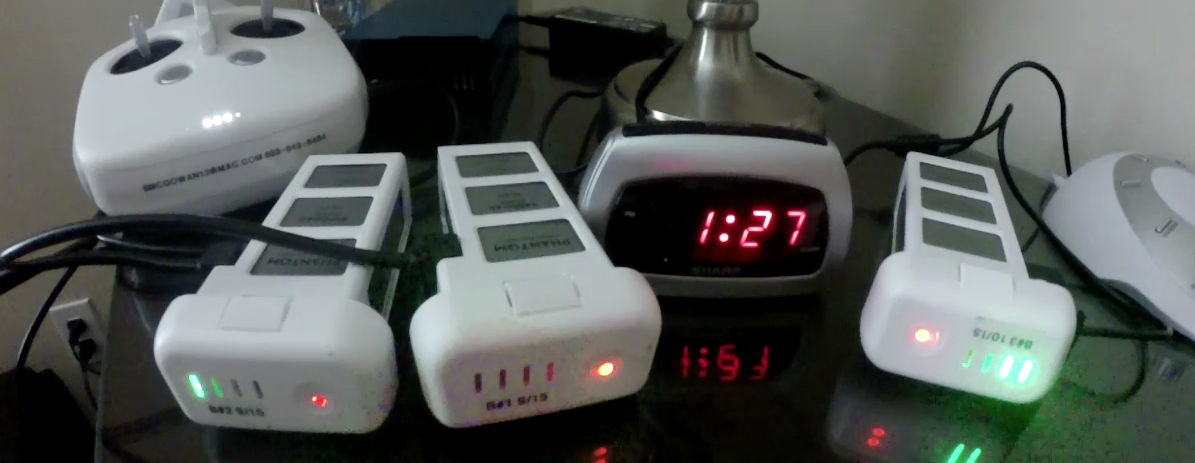

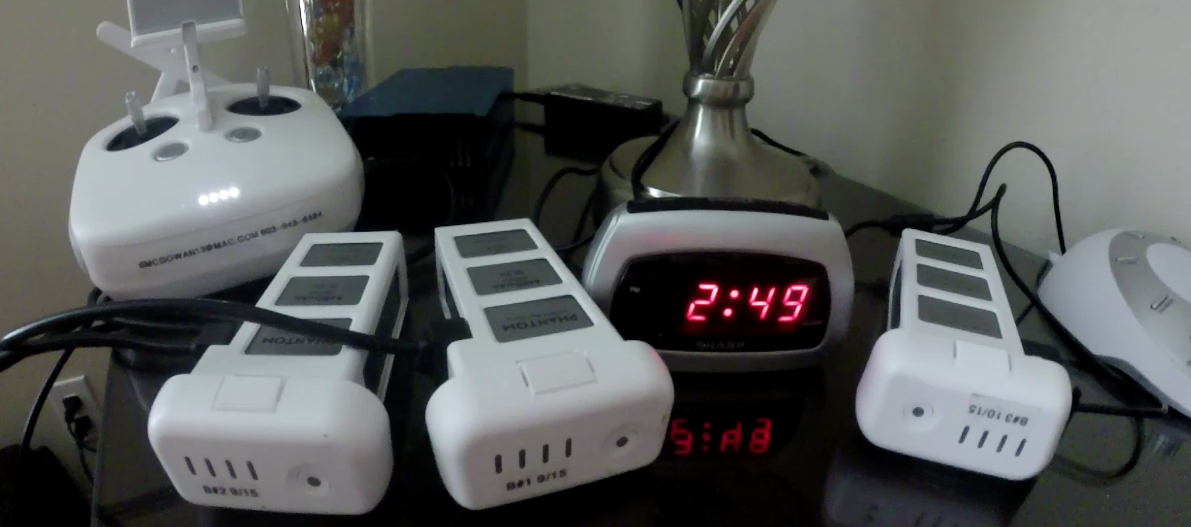

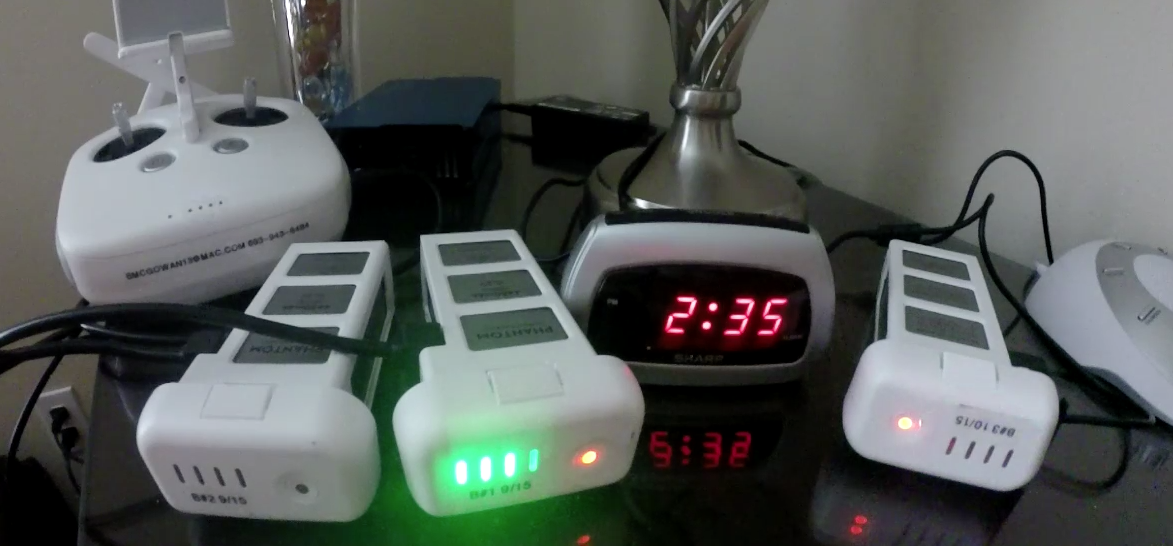

    Test Start 0m.png Anbee B2 68m.png DJI 57W B3 Charged 70m.png Anbee B1 82m.png Anbee Remote 90m.png

  18. III% Streve

    Joined:
    Aug 1, 2015
    Messages:
    1,756
    Likes Received:
    515
    The real test is putting it up against the 100W charger. Kinda pointless testing speed of charge with the baby brother from DJI.

  19. Mordor

    Joined:
    Jul 27, 2015
    Messages:
    639
    Likes Received:
    114
    Blue one.

    Thinking in buy one and i can confirm its OK device.
    Even mine will be buyed directly from China....

  20. D4T_PoM

    Joined:
    Jul 28, 2015
    Messages:
    693
    Likes Received:
    183
    Location:
    London UK
    I have a Blue charger which I bought from Amazon.

    Works like a charm, so much more convenient to charge 3 batteries and the controller in one go.

    But the worst part is I have 4 batteries :eek:
    So I charge 3 with the blue charger and 1 with the 100w DJI P3 charger.
